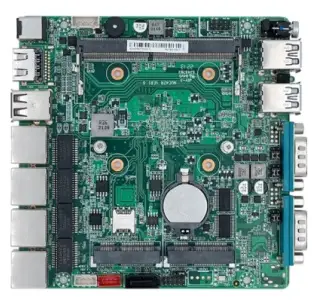

NP-NANO-ITX-J1900 Mother Board
Intel Quad-Core Celeron J1900 (2.0 GHz) CPU, Windows 10 Fan less NANO ITX Mother Board
NP-NANO-ITX-J1900 Mother Board
Starting at $197.00
NP-NANO ITX-J1900 features a fan less design with the Intel Quad-Core Celeron J1900 (2.0 GHz) Quad Core CPU. Includes Win 10 Device Drivers, heat sink and 4GB SO-DIMM Memory. The NP-NANO ITX-J1900 is designed to provide a cost-effective and versatile solution for a wide variety of industrial and commercial applications. Meet the requirements of your application with optional Windows 10 Operating System.
Specifications
| Size | 120mm*120mm | |||
| CPU | IntelCeleron J1900 2.0GHz quad core processor | |||
| GPU | Intel CPU Intergrated Graphics | |||
| Memory | 4GB - 2SO-DIMM , DDR3L 1.35V 1333/1600MHz Memory Maximum Support 8G | |||
| Display Connector | 2 HDMI or HDMI+VGA, Support HDMI VGA display synchronously and asynchronously | |||
| On board LAN | 1 or 2 or 4 optional Realtek RT8111E,1000M Ethernet controllers Support PXE Guidance,and Remote Wakening | |||
| Storage | 1* 7pin SATA3.0 HDD connector,transmission speed 6Gbps | |||
| 1* mSATA3.0 slot | ||||
| Expand Socket | 1* Mini-PCIe slot,support WIFI/4G module | |||
| USB | 6*USB2.0 1*USB3.0 | |||
| Power Supply | DC 12V | |||
| Front I/O Interface | 4* USB 2.0 | |||
| 1* Line out and MIC-In two-in-one jack | ||||
| 2* DB9 RS232 serial ports（RS232 default，COM1 and COM2 can be changed to RS485 by jumper） | ||||
| 1* Hard disk LED light | ||||
| 1* Power-on button | ||||
| Back I/O | 1* HDMI1.4 display port | |||
| 1* VGA display port（2个HDMI1.4 or HDMI+VGA optional） | ||||
| 1* USB 3.0 port，1* USB 2.0 port | ||||
| 2* RJ-45 1000M Ethernet controllers（Can change one LAN to USB 2.0） | ||||
| 1* 12V DC power input | ||||
| Built-in I/O | 1* USB 2.0 1*4Pin（USB2.0 cannot use when you use 4G function） | |||
| 2* COM port 2*5Pin（COM 1 to 4 optional） | ||||
| 1* 4pin ATX power input connector | ||||
| 1* Hard disk power supply connector | ||||
| GPIO support 4 ways input output | ||||
| 1* Front panel switch-on and LED light connector 2*5Pin | ||||
| BIOS | 64Mb Flash ROM | |||
| Form Factor | MINI-ITX (6 layers PCB) , 120mm*120mm | |||
| System Monitoring | Wake on LAN System Power Management Temperature management, voltage management Fan speed monitoring | |||
| and Management | ||||
| Working Humidity | 0% ~ 95% (relative humidity, non-condensing) | |||
| Operating Temperature | -15 C ~ 60 C | |||
