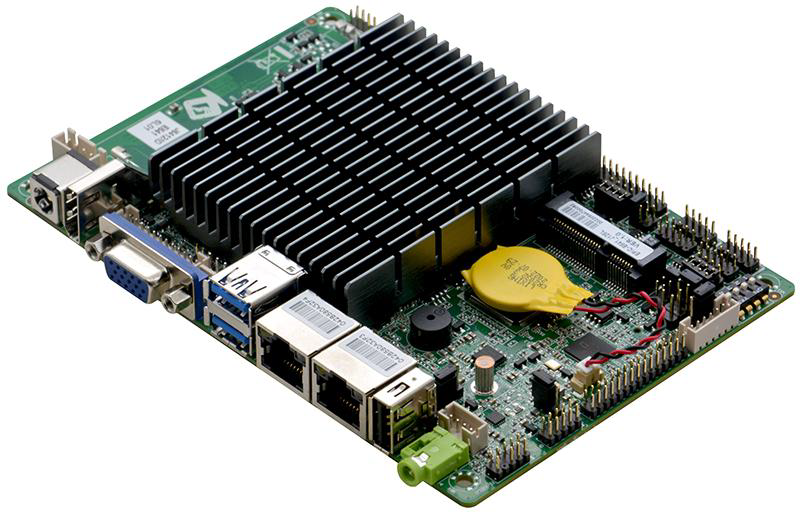

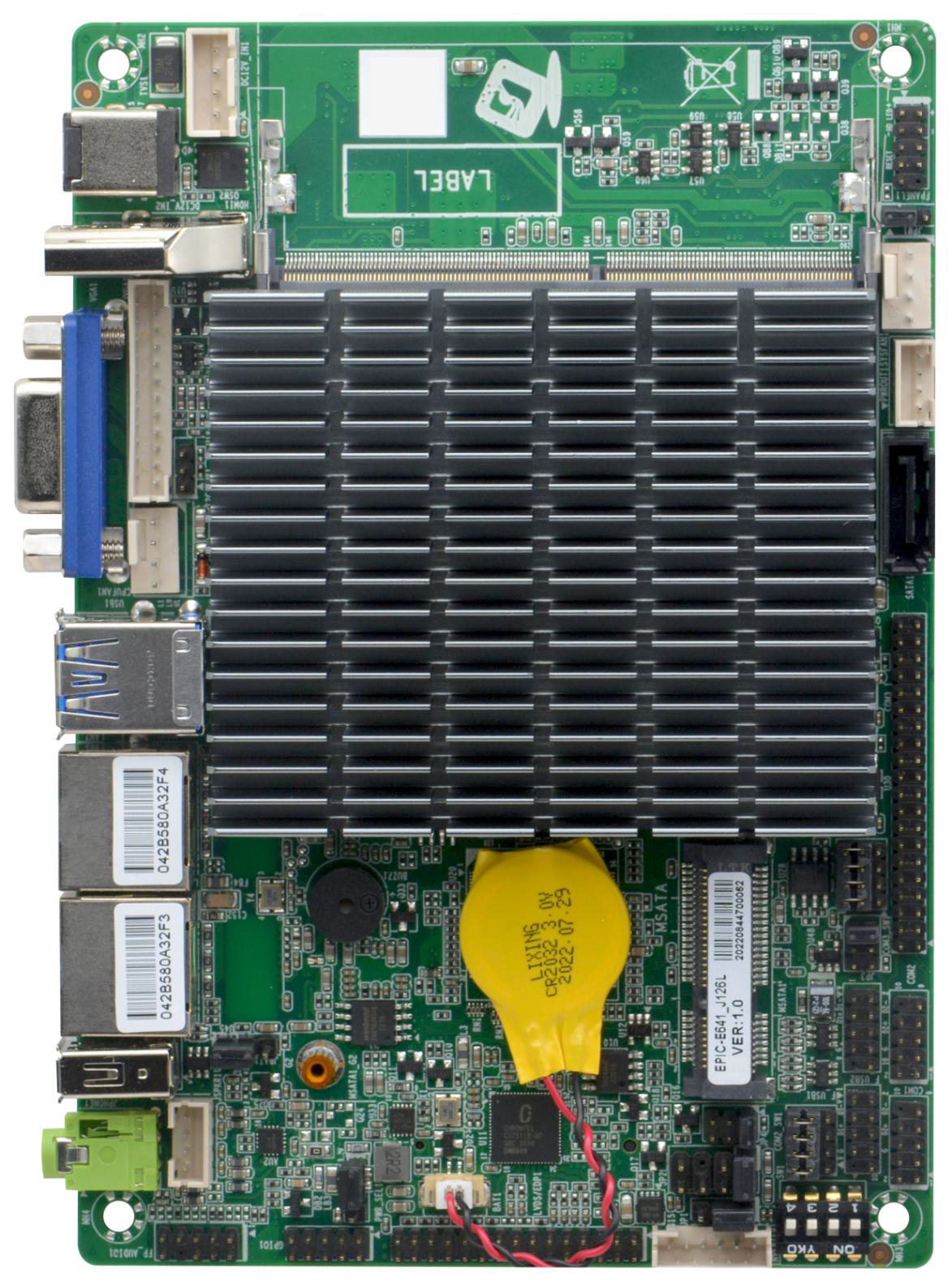

| Model
No. | NP-EPIC-J6412 |
| Processor | Onboard Intel Celeron J6412 2.0GHz Quad Core 4-Threads
processor, TDP 10W |
| | Compatible with Intel Elkhart
Lake series CPU |
| Chipset | SOC |
| Memory | 1* SODIMM DDR4 RAM slot, 2400MHz,
up to 16GB |
| Display | Integrated Intel UHD Graphics |
| | 1* VGA, 1*HDMI, 1* LVDS port |
| LAN | 2* Intel I225V Gigabit Ethernet,
support Wake On LAN、PXE function |
| Storage | 1* 7pin SATA3.0 hard disk port,
transfer speed up to 6Gbps |
| | 1* MSATA slot, transfer speed up
to 6Gbps |
| Onboard | ALC897 7.1+2 channel high
definition audio controller, support |
| Audio | MIC/Line-out, amplifier. |
| | Amplifier support 2Ω3W
speaker |
| Expansion
Slot | 1* Mini-PCIE slot, support WiFi
/4G module |
| | Rear I/O Port 1* 12V DC_In Jack |
| | 1* VGA |
| | 1* HDMI |
| | 2* USB3.0, 1* USB2.0 |
| | 2* RJ45 Gigabit LAN port |
| | 1* Line-out (green) |
| Internal
I/O | 1* DC power connector, 1*4pin,
support 12V power input output |
| Port | 1* JVGA port, 1*12pin, same
signal with DB15 |
| | 1* LVDS port, 2*15pin, support
dual channel 24BIT, (share same pin EDP) |
| | 1* Screen backlight power supply
port, 1*6pin |
| | 4* USB2.0, 2*5pin |
| | 6* RS232 COM port, COM2/COM3
support RS485/422 selectable |
| | 1* SATA power supply port, 1*4pin |
| | 1 Front audio port, 2*5pin |
| | 1* Amplifier port, 1*4pin |
| | 1* SIM slot |
| | 1* Front panel function button
and LED indicator port, 2*5pin |
| Fan | Fanless cooling, reserve 1*4pin
CPU smart fan connector, 1*4pin system fan |
| Connector | connector |
| GPIO | Support 4-in 4-out GPIO |
| BIOS | 64Mb Flash ROM |
| Watchdog | Support hardware reset function (L256, 0~255
seconds) |
| Support
OS | Windows 10/11/Linux |
| Power
Type | Adopt DC 12V power supply |
| Operating | |
| Temp. | -20℃～60℃ |
| Storage | |
| Temp. | -20℃～70℃ |
| Working | |
| Humidity | 5%-95% relative humidity,
non-condensing |
| Dimension | 148mm x 102mm |
| |
