IVC-XXPC-P Series
Heavy Duty Industrial Panel PC
The largest, most expandable panel PCs in the range, for stations that need a big screen, lots of serial ports and room to grow. Four sizes from 15 to 23.8 inches with an IP65 front and an aluminum front cover.
15 to 23.8 in
Screen sizes
IP65
Front panel
5 serial
4 x RS-232, 1 x RS-422/485
Key Features
- Four screen sizes from 15 to 23.8 inches
- Intel Pentium processor on an Intel H81 board, up to 16 GB DDR3
- Four RS-232 ports plus one RS-422/485

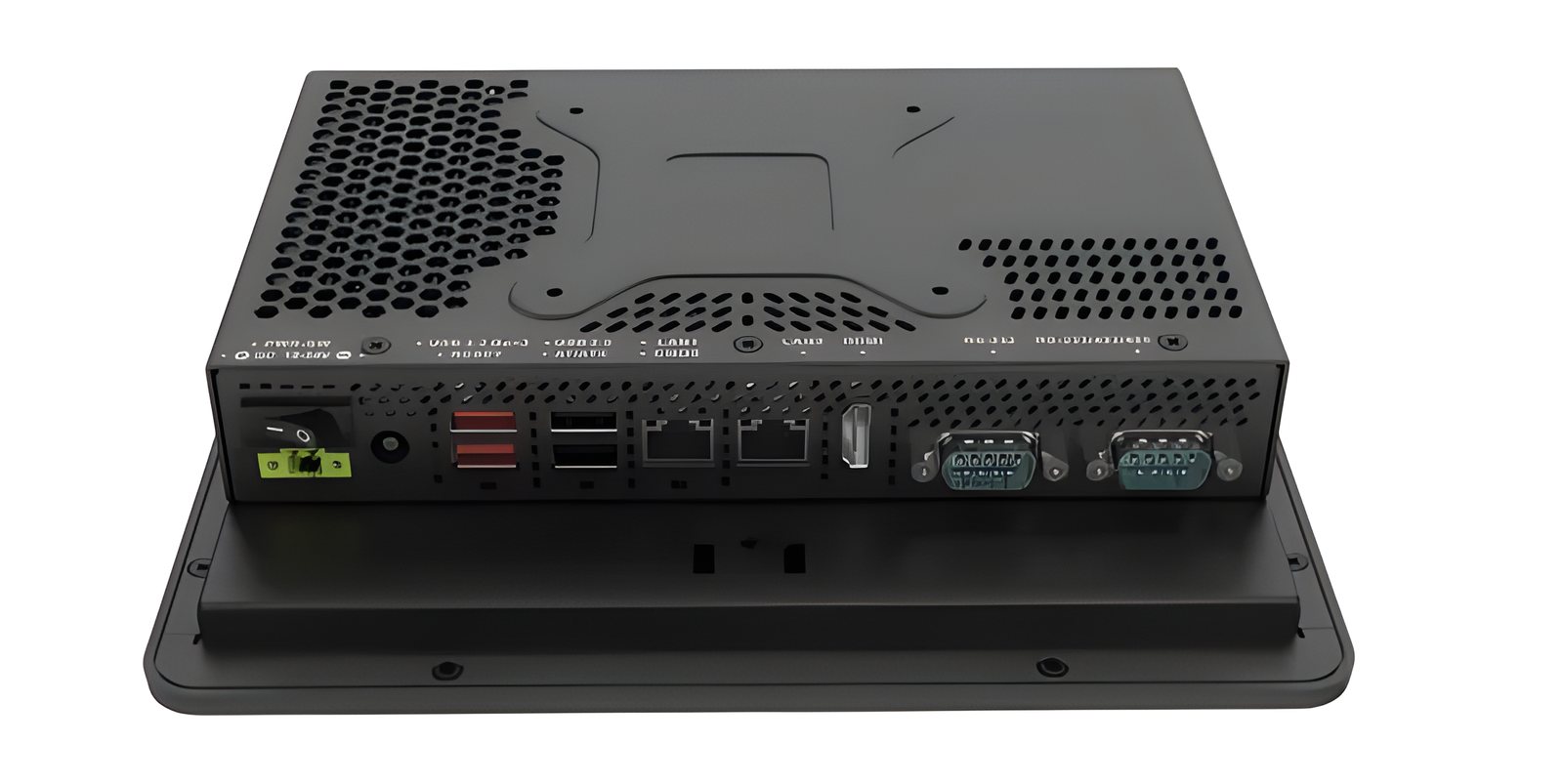

- Two RJ45 LAN ports, USB 3.2 and USB 2.0, HDMI and VGA out
- Two Mini PCIe slots, mSATA and a 2.5 in bay (3.5 in on larger sizes)
- IP65 front with aluminum front cover
Typical Applications
Models
IVC-XXPC-P Models and Screen Sizes
Every model shares the platform specifications below. Ask for the size, touch type and configuration you need.
| Model | Screen | Resolution | Brightness |
|---|---|---|---|
| IVC-15PC-P | 15 in (4:3) | 1024 x 768 | 450 nits |
| IVC-17PC-P | 17 in (5:4) | 1280 x 1024 | 350 nits |
| IVC-22PC-P | 21.5 in (16:9) | 1920 x 1080 | 250 nits |
| IVC-24PC-P | 23.8 in (16:9) | 1920 x 1080 | 250 nits |
Specifications
IVC-XXPC-P Technical Specifications
| CPU | Intel Pentium (LGA1150), up to 65W TDP |
| Chipset | Intel H81 |
| Memory | 2 x DDR3 SO-DIMM 1066/1333/1600 MHz, max 16 GB |
| Touchscreen | 5 wire resistive or 10 point projected capacitive, anti glare |
| LAN | 2 x RJ45 |
| USB | 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Serial | 4 x RS-232, 1 x RS-422/485 |
| Video out | 1 x HDMI, 1 x VGA |
| Expansion | 2 x Mini PCIe |
| Storage | 1 x mSATA plus 1 x 2.5 in bay (3.5 in bay option on 21.5 and 23.8 in) |
| Power | 90 to 264V AC, 220W ATX power supply |
| Construction | Aluminum front cover, sheet metal rear cover |
| IP rating | IP65 front |
| Mounting | Panel or 100 x 100 VESA; rack mount on 15 and 17 in |
| Operating temperature | −10°C to 50°C with air flow |
| Humidity | 10% to 95% non condensing |
| Certifications | CE, FCC |
Specifications are subject to change without notice. Confirm your exact configuration with our team.
Documents
Where to Buy
Order direct from IVC Displays with a quote, or buy through the distributor your purchasing team already has an approved account with.
Common Questions
Frequently Asked Questions
When the station needs a large screen, several serial devices, or expansion room for extra storage or Mini PCIe cards. For DC powered or wide temperature installs, ask our team which line fits best.
