NP-4XX-BIPC Series
Button Integrated Industrial Computer
A touch screen panel PC with physical Start, Stop, Reset and E-Stop buttons built into the bezel. Operators get the speed of a touchscreen and the certainty of a real button, even with gloves on.
E-Stop
Built into bezel
IP65
Front panel
−20 to 60°C
Operating range
Key Features
- Start, Stop, Reset, E-Stop and custom function buttons in the bezel
- LED illuminated buttons for status and alarms
- Button quantity, layout, colors and functions can be customized
- IP65 front panel for washdown and dust
- Fanless Intel 11th Gen i5, 4 GB to 64 GB DDR4
- Works with Ethernet/IP, Modbus TCP/IP and Profinet
Typical Applications
Specifications
NP-4XX-BIPC Technical Specifications
| Display sizes | 15.6 and 21.5 in (other models in 10.1, 12.1, 15, 17, 19 and 21.5 in) |
| Touchscreen | PCAP or resistive |
| Integrated buttons | Start, Stop, Reset, E-Stop, custom functions, LED illumination |
| CPU | Intel 11th Generation i5 |
| Memory | 4 GB to 64 GB DDR4 |
| Storage | SSD 128 GB to 1 TB |
| Power input | 9 to 36V DC |

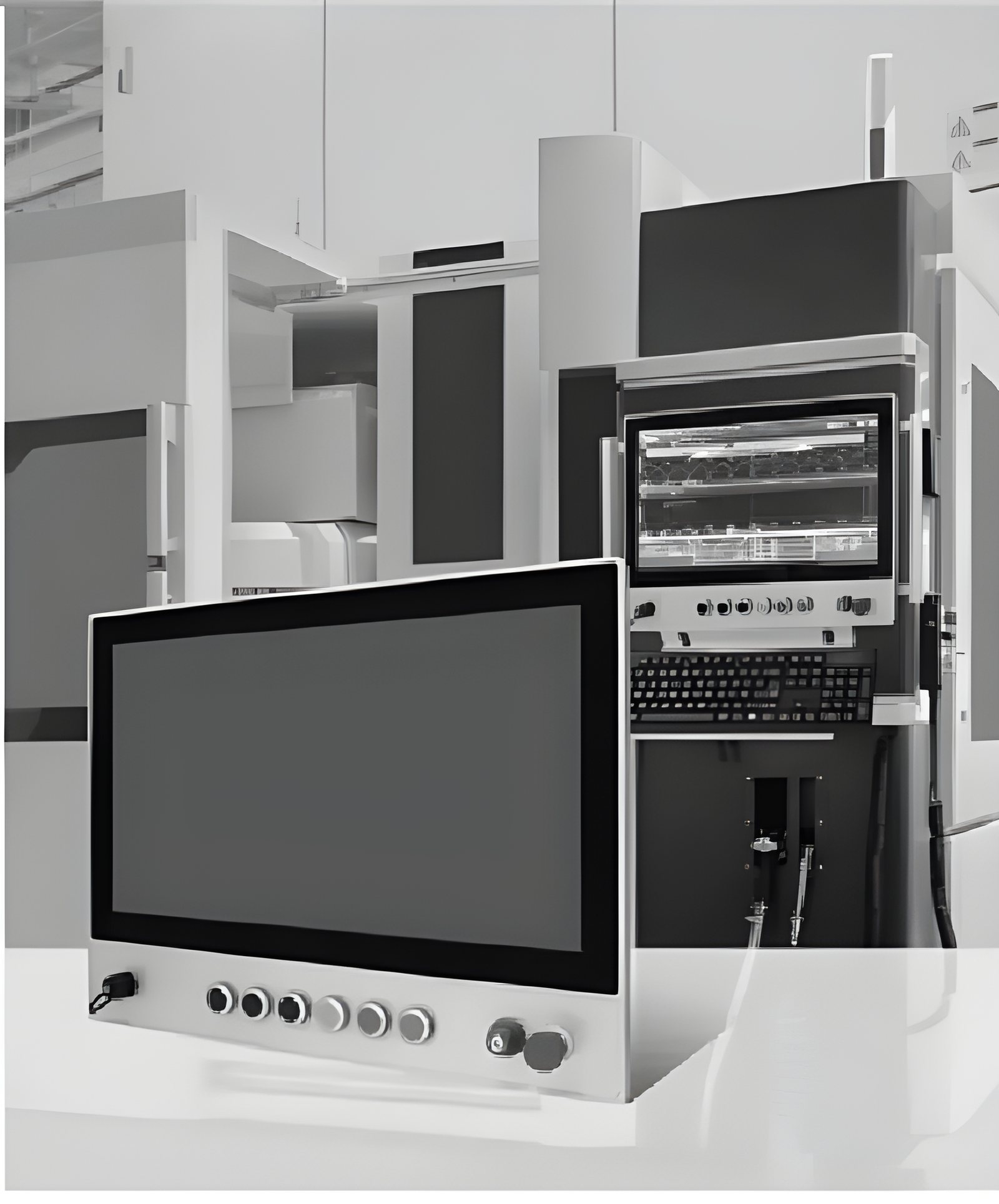

| Mounting | Swing arm, supports Rittal CP-40 |
| Operating temperature | −20°C to +60°C |
| Ingress protection | IP65 front panel |
| Operating systems | Windows 10, Windows 11, Linux |
Specifications are subject to change without notice. Confirm your exact configuration with our team.
Where to Buy
Order direct from IVC Displays with a quote, or buy through the distributor your purchasing team already has an approved account with.
Common Questions
Frequently Asked Questions
Yes. Buttons can be mapped to custom functions, PLC inputs, macros or application commands.
Yes. E-Stop buttons are available and can be integrated into your machine safety circuit.
Yes. Physical buttons are ideal for gloved operation.
Industrial Computers
Other Industrial Computers
Get a Quote on the NP-4XX-BIPC
Tell us the screen size, touch type and configuration you need. Our Saline, MI team will reply with pricing and lead time.
