Industrial and military equipment increasingly demands optical treatments that hold up in cockpits, on ship bridges, and on factory floors with mixed lighting. Yet many buyers still confuse anti-reflective (AR) coatings with anti-glare (AG) surfaces, treating them as interchangeable when they solve different problems through completely different physics.
This guide breaks down what actually happens at the optical level when light hits an AR-coated display, why it matters for equipment operating in harsh-light environments, and how to evaluate coating specs beyond just brightness numbers.
TL;DR
- AR coatings use multi-layer thin films that cause destructive interference, canceling reflected light waves
- Anti-glare (AG) diffuses light with a rough surface texture; AR cancels reflection through layered optics and keeps the image sharp
- High-performance multi-layer AR coatings can push reflectance below 1%, sometimes far lower
- Outdoor kiosks, marine electronics, cockpits, and rugged industrial computers benefit most—glare there directly affects safety
What Is an Anti-Reflective Display?
An anti-reflective display is a screen with a thin optical film applied to its cover glass, engineered to minimize the light reflected back toward the viewer's eye. Without this treatment, ambient light bouncing off the glass surface washes out contrast, and screens become difficult or impossible to read in bright, variable lighting.
AR is not the same thing as:
- Anti-glare (AG) — a mechanical surface treatment that diffuses light through a roughened or matte texture
- Scratch-resistant coating — a separate hardness layer with no optical function
Even as backlights get brighter, AR coatings stay relevant. Raising backlight power to fight glare increases cost, heat, and power draw. An optical solution that reduces reflection at the source is often more efficient than just brute-forcing more light through the panel.
Single-Layer vs. Multi-Layer AR
Coating complexity affects both cost and performance:
- Single-layer AR — lower cost, moderate reflectance reduction, effective for a narrower wavelength range
- Multi-layer/broadband AR — higher manufacturing complexity, near-zero reflection across the visible spectrum

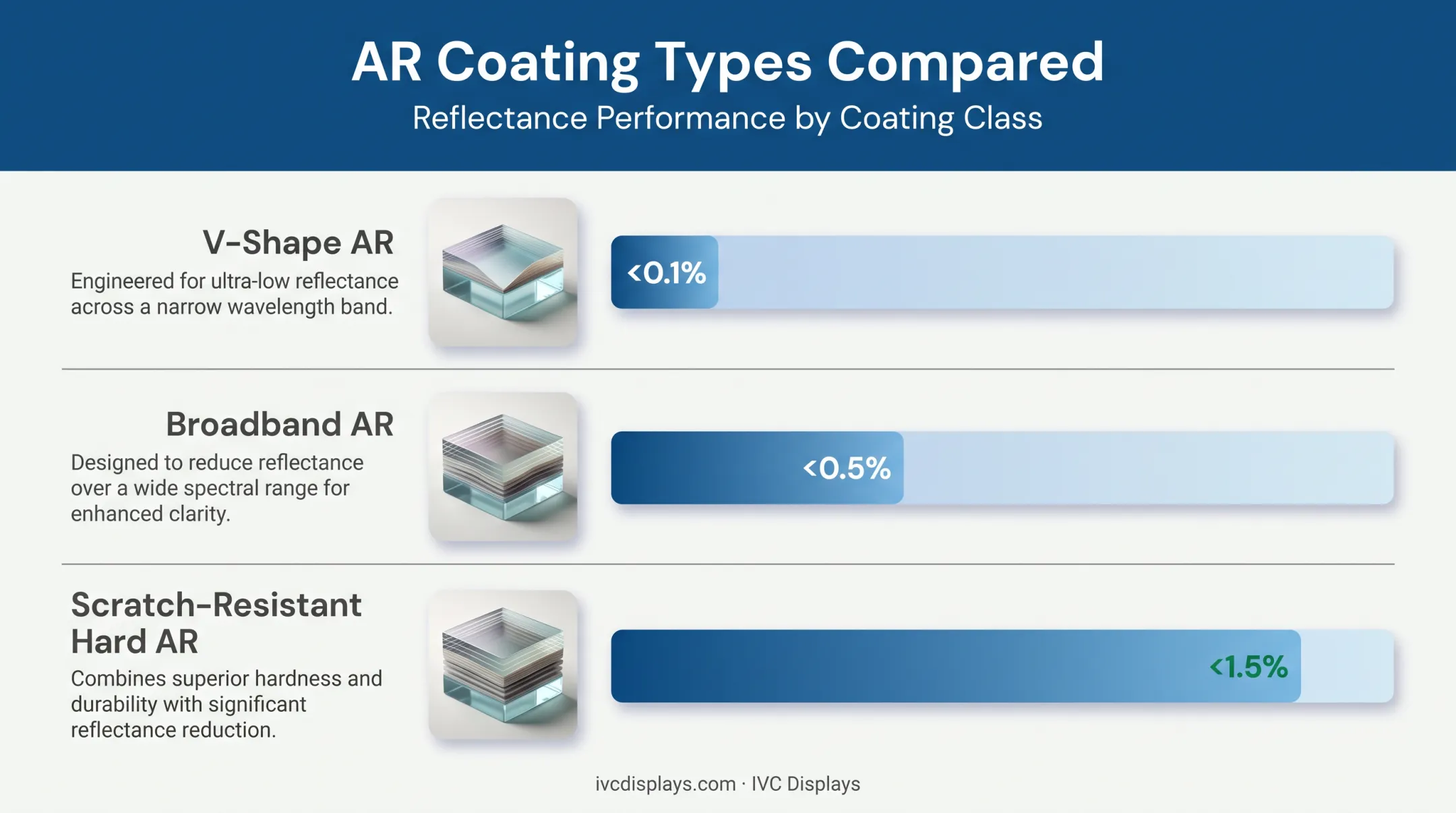

SCHOTT's optical coating data shows how layer count shifts performance (SCHOTT technical coating data):
- V-shape AR — under 0.1% reflectance
- Broadband AR — under 0.5% reflectance
- Scratch-resistant hard AR — under 1.5% reflectance
Figures vary by spectral range and angle of incidence. These are manufacturer-specific benchmarks, not universal display guarantees, but they show how layer count and design directly affect results.
How Does Anti-Reflective Coating Work?
AR coatings work through precisely engineered optical layering on the glass surface. The process breaks down into a few physical steps.
Light Behavior at the Glass Surface
Light reflects any time it crosses a boundary between two materials with different refractive indices, such as air meeting glass. This isn't triggered or active. It's a passive, continuous physical property of that interface. On untreated glass, this reflection bounces a measurable portion of incoming ambient light straight back at the viewer, which is exactly why screens wash out in bright conditions.
The Coating Application Process
Manufacturers deposit ultra-thin layers onto the glass surface using vacuum deposition or sputtering techniques. Each layer gets:
- A specific thickness, calculated as a fraction of visible light's wavelength
- A precise refractive index different from the layers around it
- A deliberate sequence that shifts reflected waves out of phase with each other Ion-beam sputtering is one common deposition method, and it's specifically valued for the level of control it offers over film thickness, density, and composition during application (AEM ion-beam sputtering process).

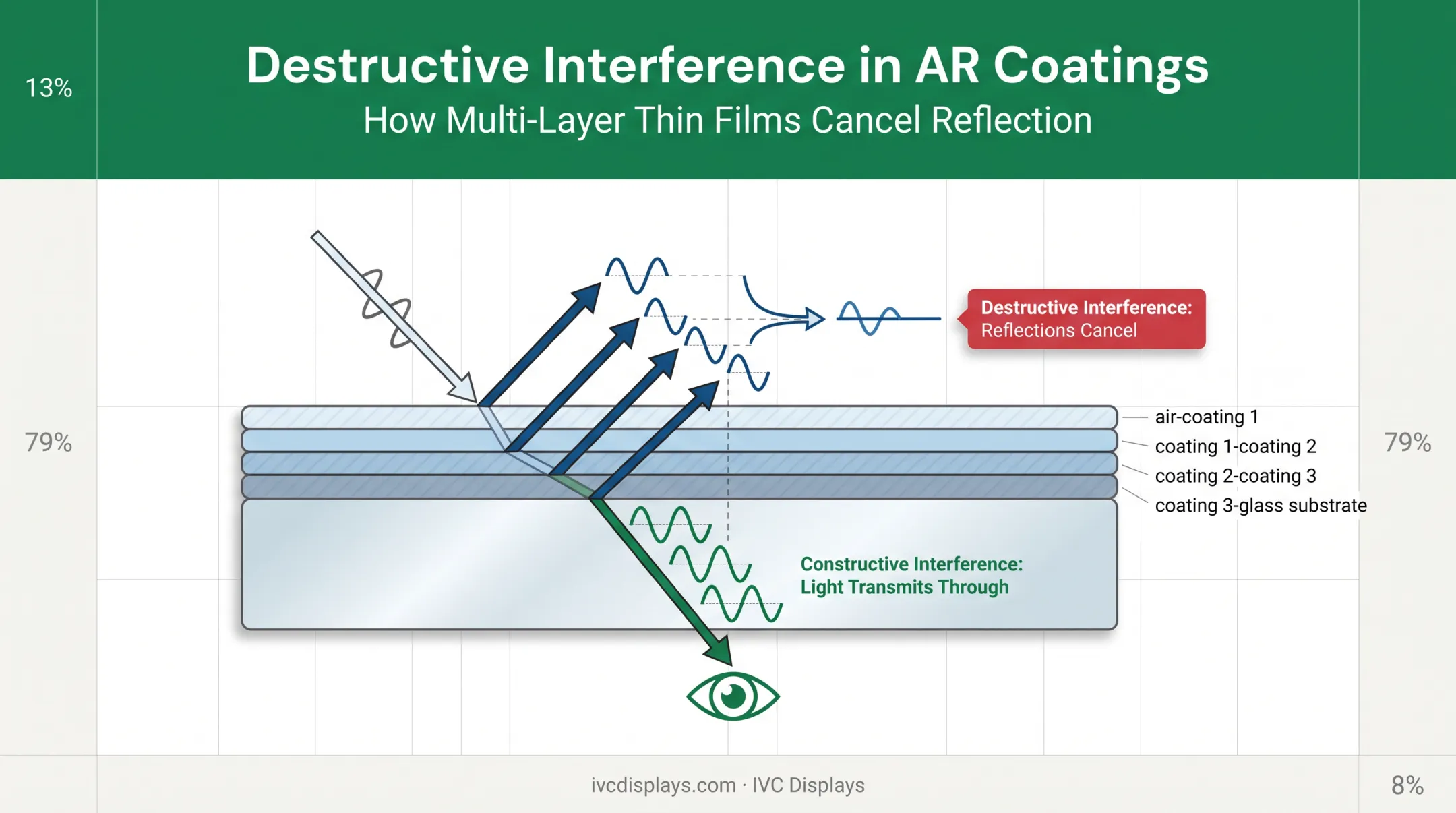

Destructive Interference: The Core Mechanism
Reflected light waves bouncing off each layer boundary arrive out of sync with each other. When waves are out of phase, they cancel each other out: that's destructive interference. Transmitted light waves do the opposite. They reinforce each other through constructive interference, so more light passes through the glass to the viewer instead of bouncing back off the surface. The measurable result varies by coating design. Edmund Optics notes that AR coatings can reduce reflection at each surface to less than 0.1% (Edmund Optics on optical coatings), versus roughly 4% per surface on untreated glass.
Calibration and Layer Precision
Coating performance hinges on tightly controlled layer thickness and refractive index during manufacturing. Even small deviations shift which wavelengths get canceled, degrading performance across the visible spectrum. This is why quality control during deposition matters so much. Metrology tools that measure thickness, reflectance, and transmission during production help catch inconsistencies before they reach a full batch of finished glass.
The Output: Clearer, Higher-Contrast Display
The end result is a screen that:
- Transmits more usable light to the viewer
- Preserves color accuracy and contrast
- Stays readable under direct sunlight or harsh artificial lighting For operators, that translates to less eye strain, faster task completion, and safer equipment operation in glare-heavy environments. Those outcomes matter far more on a factory floor or ship bridge than on a phone screen.

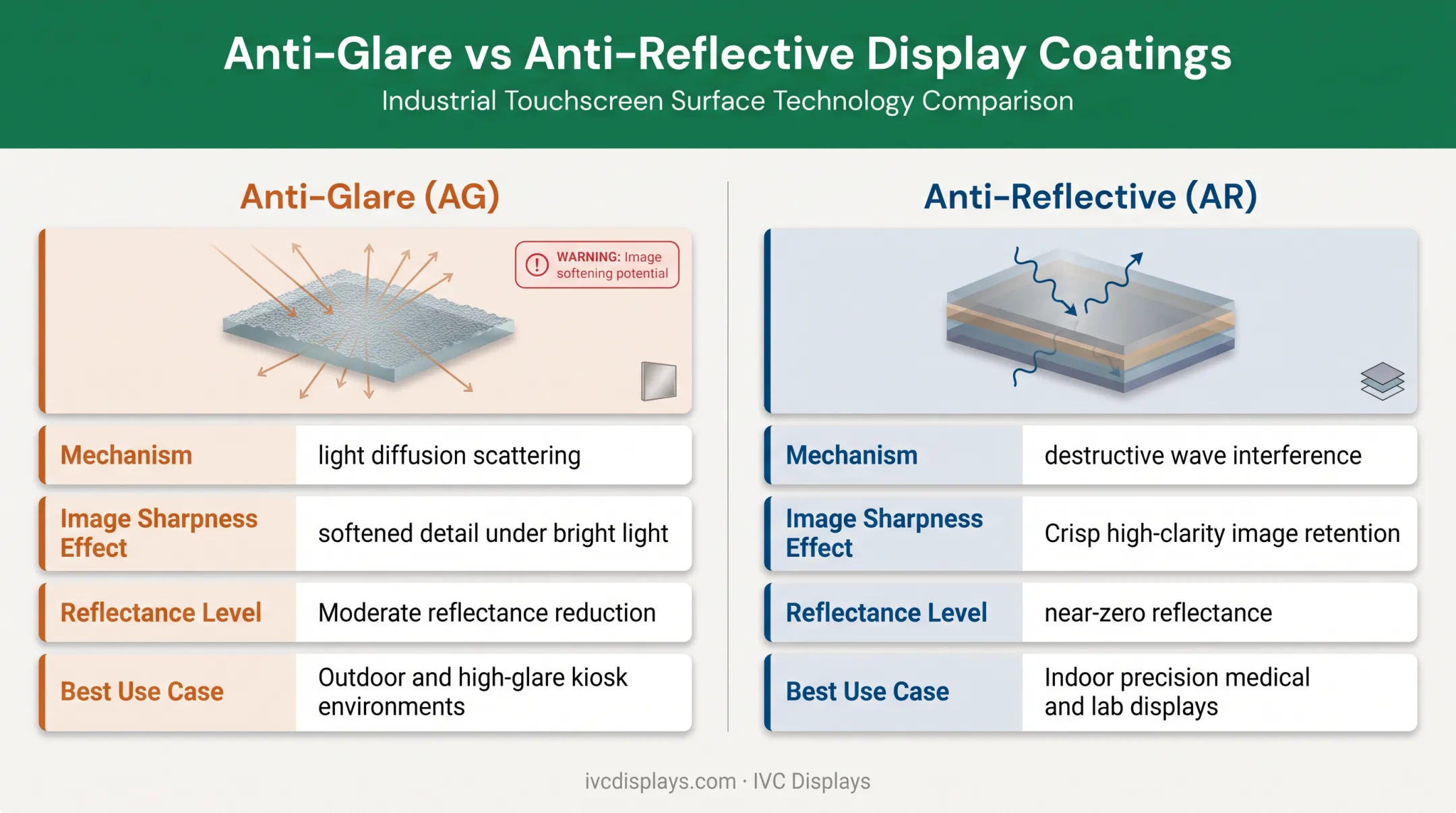

Anti-Reflective vs. Anti-Glare: Clearing Up the Confusion
These two get lumped together constantly, but they solve the reflection problem in different ways.
Anti-glare (AG) uses a roughened or matte surface to scatter incoming light in multiple directions. This reduces the intensity of glare hotspots, but it doesn't eliminate reflection. It just spreads it out.
Anti-reflective (AR) changes the optical layering of the glass itself, canceling reflected waves through interference rather than diffusing them.
| Factor | Anti-Glare (AG) | Anti-Reflective (AR) |
|---|---|---|
| Mechanism | Surface texture scatters light | Thin-film layers cancel light waves |
| Effect on image | Can soften sharpness slightly | Preserves image clarity |
| Total reflectance | Higher than AR | Typically much lower |
| Best for | Extreme outdoor glare, lower cost | Precision tasks needing high clarity |
Some manufacturers combine both treatments. Nippon Electric Glass, for instance, offers an AG+AR product that layers anti-glare texture with an anti-reflective coating for applications needing both benefits (NEG AG+AR coating).
Neither option is universally "better." AG tends to cost less and holds up well in extreme outdoor glare. AR delivers sharper clarity for precision tasks like HMI monitoring, inspection stations, or marine navigation. Match the treatment to your lighting environment and how much image clarity the job demands.
Where Anti-Reflective Displays Are Used
AR treatment is typically applied at the display module or cover-glass assembly stage, before that glass gets integrated into a final enclosure. Once installed, those treated surfaces face very different lighting and durability demands depending on the environment.
Environments where AR performs best:
- Outdoor kiosks and digital signage exposed to direct sun
- Vehicle cockpits and heavy equipment cabs
- Marine bridges and offshore platform control rooms
- Factory floors with mixed overhead and ambient lighting
Industries like military, oil and gas, food processing, and logistics often need both optical clarity and mechanical toughness in the same unit. A display that reads clearly in sunlight but can't survive a washdown cycle or vibration on a plant floor isn't much use.

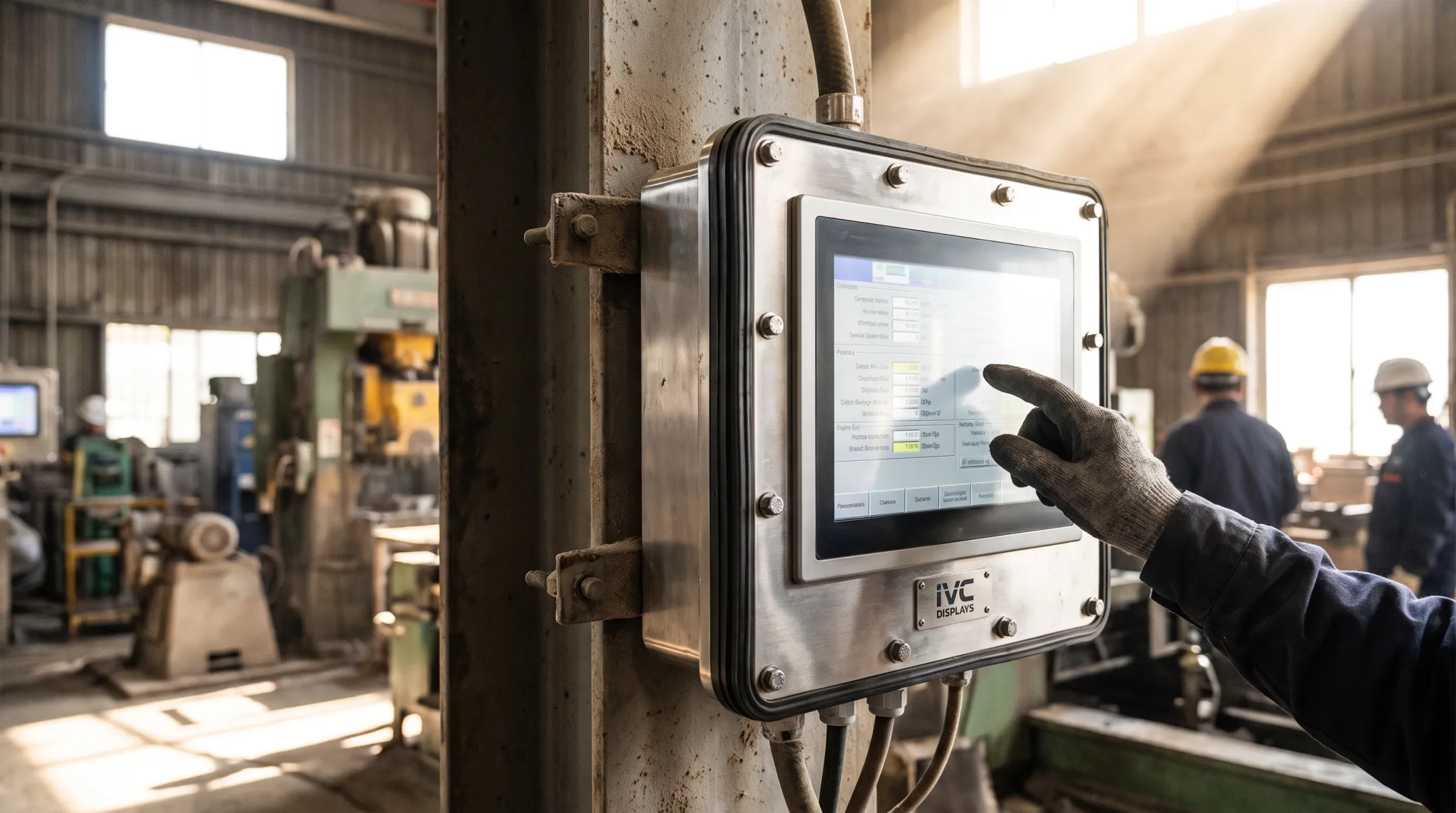

That's the balance IVC Displays engineers for in rugged panel PCs and industrial monitors. Product lines such as the stainless steel waterproof systems and NP-series industrial touch screen monitors are built for harsh, high-glare conditions, with:
- Brightness options from 350 to 1,000 nits depending on model
- IP65 through IP69K sealing for washdown and dust exposure
Consumer devices generally prioritize touch feel and cosmetic finish. Industrial and defense applications flip that priority, weighting long-term coating durability and resistance to abrasion or chemical exposure much higher, since these screens don't get replaced every two years like a phone.
Conclusion
AR displays work through precisely engineered thin-film interference, not a simple surface texture change. That is why AR coatings deliver sharper clarity than AG surfaces in high-glare environments.
For buyers evaluating displays in harsh or high-glare settings, brightness specs alone are not enough. Ask about coating type, layer count, and durability testing. A screen rated at 1,000 nits with poor reflectance control can still wash out in direct sun. A well-designed AR coating on a lower-nit display can outperform it.
Frequently Asked Questions
Does an anti-glare screen really work?
Yes, AG screens do reduce perceived glare by diffusing light across a textured surface. However, they don't eliminate reflection the way AR coatings do, and the diffusion can slightly soften image sharpness.
What's the difference between anti-reflective and anti-glare displays?
AG diffuses light through surface texture, while AR cancels reflection through layered thin-film interference. This results in different clarity, cost, and durability trade-offs depending on your application.
What is an anti-reflective display?
An AR display is a screen treated with thin optical films engineered to minimize reflected light. This improves readability and contrast in bright or variable lighting conditions.
How long do anti-reflective coatings last on industrial displays?
Coating lifespan depends heavily on application quality and exposure to abrasion or chemicals over time. Ruggedized coatings are engineered for extended durability, but specific test data should come from the manufacturer's datasheet.
Can anti-reflective coating be added to existing screens?
Factory-applied AR coatings are built into the glass during manufacturing for the best optical performance. Aftermarket AR films exist as a retrofit option, though they generally offer somewhat lower performance than factory treatments.
Is anti-reflective coating worth it for outdoor or industrial equipment?
AR coatings improve readability and cut eye strain in high-glare industrial settings, which often justifies the cost. If you're configuring a custom display, talk to our engineering team about optical options for your environment.
