Industrial Fanless Panel PCs

Ratings range from IP65, protecting against dust and low-pressure water jets, up to IP66/IP67 for stronger water resistance, and IP69K for high-pressure, high-temperature washdowns. Selecting the right rating depends on your environment—general manufacturing floors typically need IP65, while food and pharmaceutical washdown areas require IP66-IP69K sealed stainless steel units.

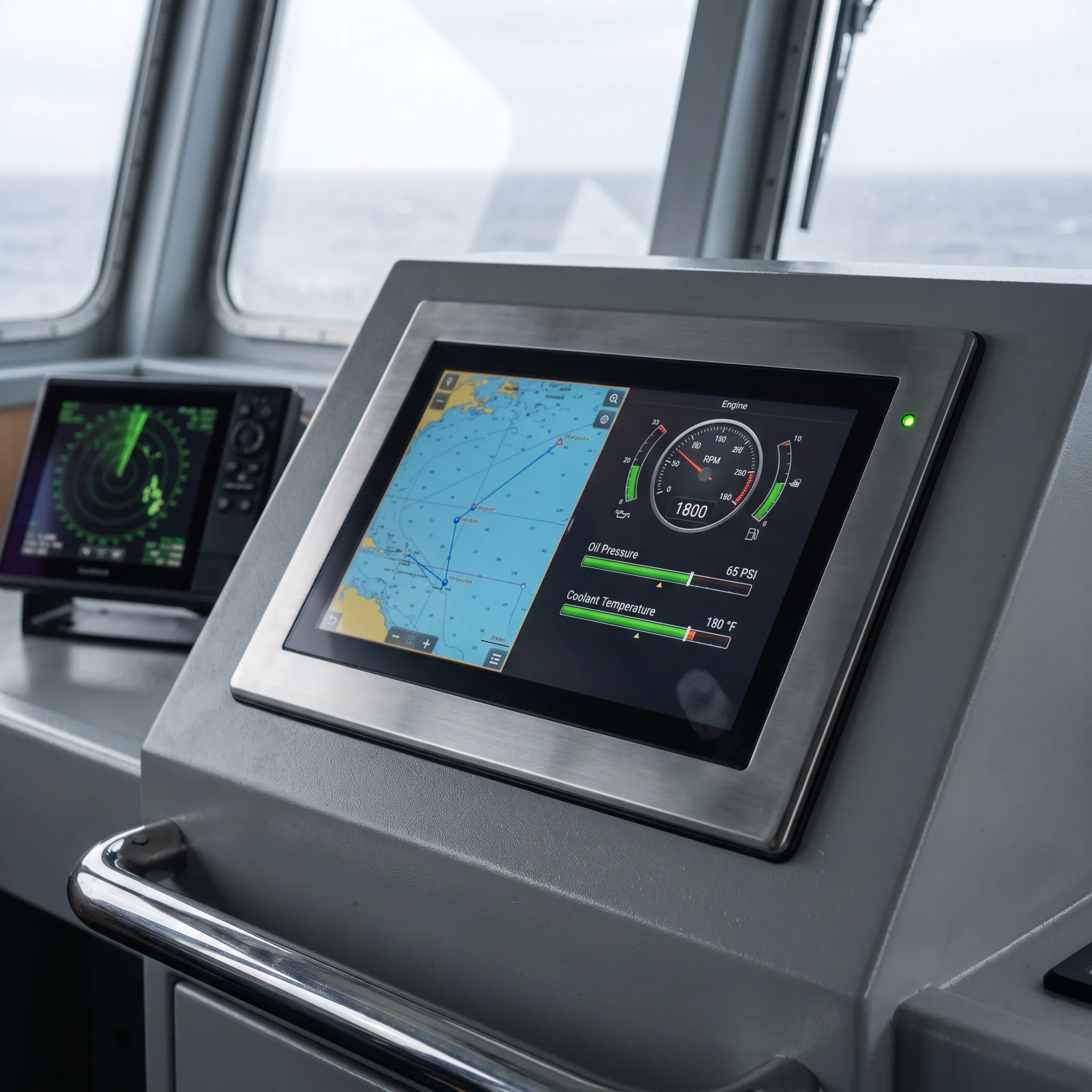

Most fanless industrial panel PCs operate reliably from -20°C to 60°C, with some marine-grade units rated for 0°C to 50°C. Wide-temperature designs use industrial-grade components and thermal management to prevent performance degradation in unheated warehouses, outdoor kiosks, or temperature-controlled processing facilities.

Yes. Manufacturers offer custom button layouts, LED illumination, mounting configurations (panel, VESA, arm, pedestal), processor and memory options, and communication protocol support such as Ethernet/IP, Modbus TCPIP, and Profinet. Custom configuration and RFQ services allow integrators to match hardware precisely to specific machine control requirements.

Common mounting options include panel mount, VESA 75x75 mount, swing arm mount (including Rittal CP-40 compatibility), and pedestal or custom OEM mounting. The right choice depends on available space, viewing angle requirements, and whether the unit needs to be embedded into an existing enclosure or control cabinet.

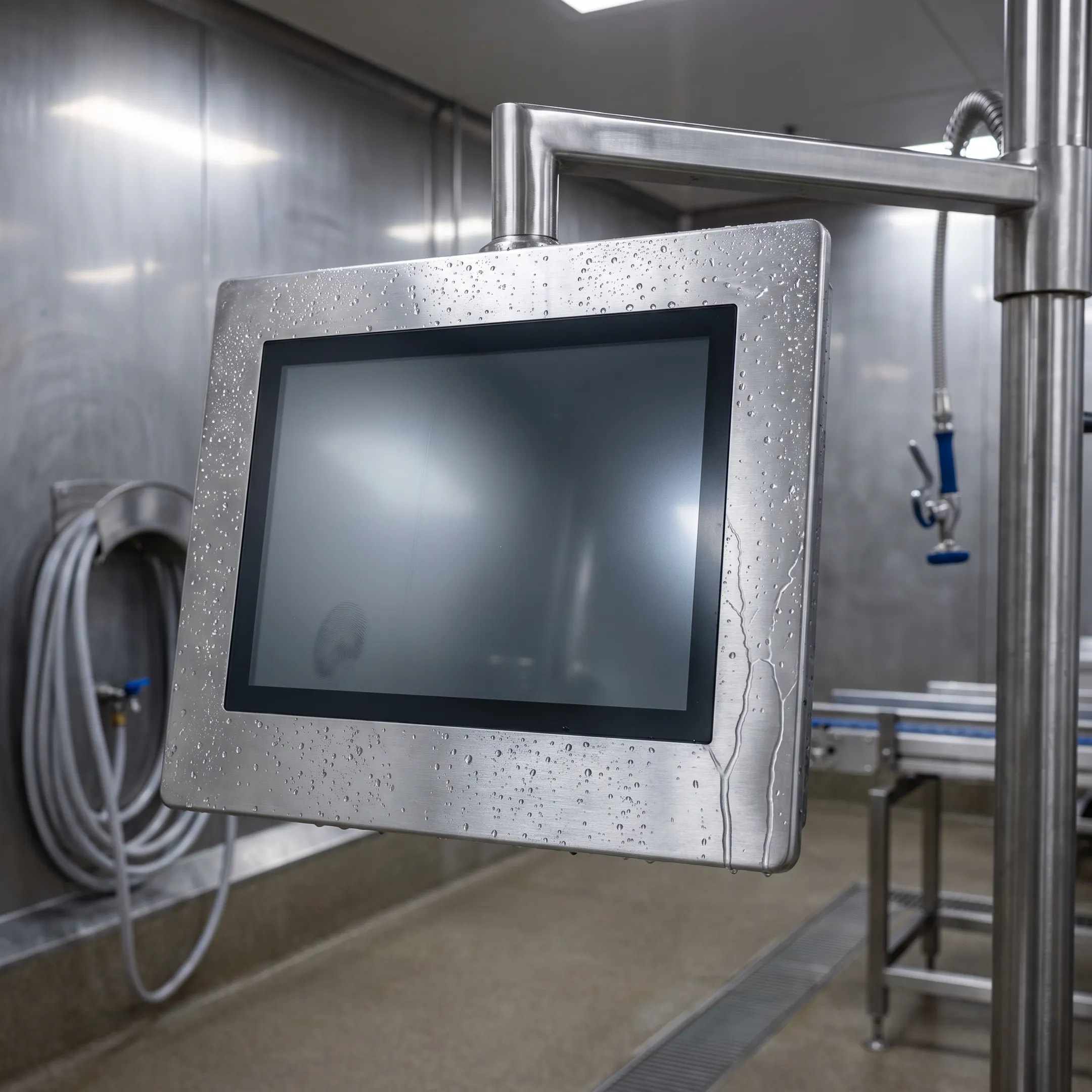

Stainless steel panel PCs with IP66-IP69K sealing and food-grade hygienic design are recommended for washdown-critical environments like dairy, meat processing, and pharmaceutical manufacturing. Their corrosion-resistant 304 or 316 stainless steel construction withstands repeated high-pressure sanitation cycles without degrading, unlike standard aluminum or metal chassis units.

Panel PCs typically offer projected capacitive (PCAP) multi-touch screens for precise, glove-compatible input, or 5-wire resistive touchscreens ideal for gloved operation in industrial settings. Display sizes range from 7 to 24 inches, with high-brightness options up to 1000 nits for outdoor or high-glare environments.
