Choosing wrong isn't just an inconvenience. It affects visibility on the floor, maintenance budgets, and how often your equipment goes dark unexpectedly. This guide breaks down both technologies so manufacturing, logistics, and defense buyers can specify hardware with confidence.
TL;DR
- LED backlighting runs longer, draws less power, and resists vibration, making it the standard for new rugged displays
- CCFL is older tech still found in legacy industrial and medical equipment, but it needs high-voltage inverters and mercury-filled tubes
- Cost, durability, power draw, and long-term maintenance differ sharply between the two
- Your choice depends on whether you're maintaining an aging fleet or specifying new hardware

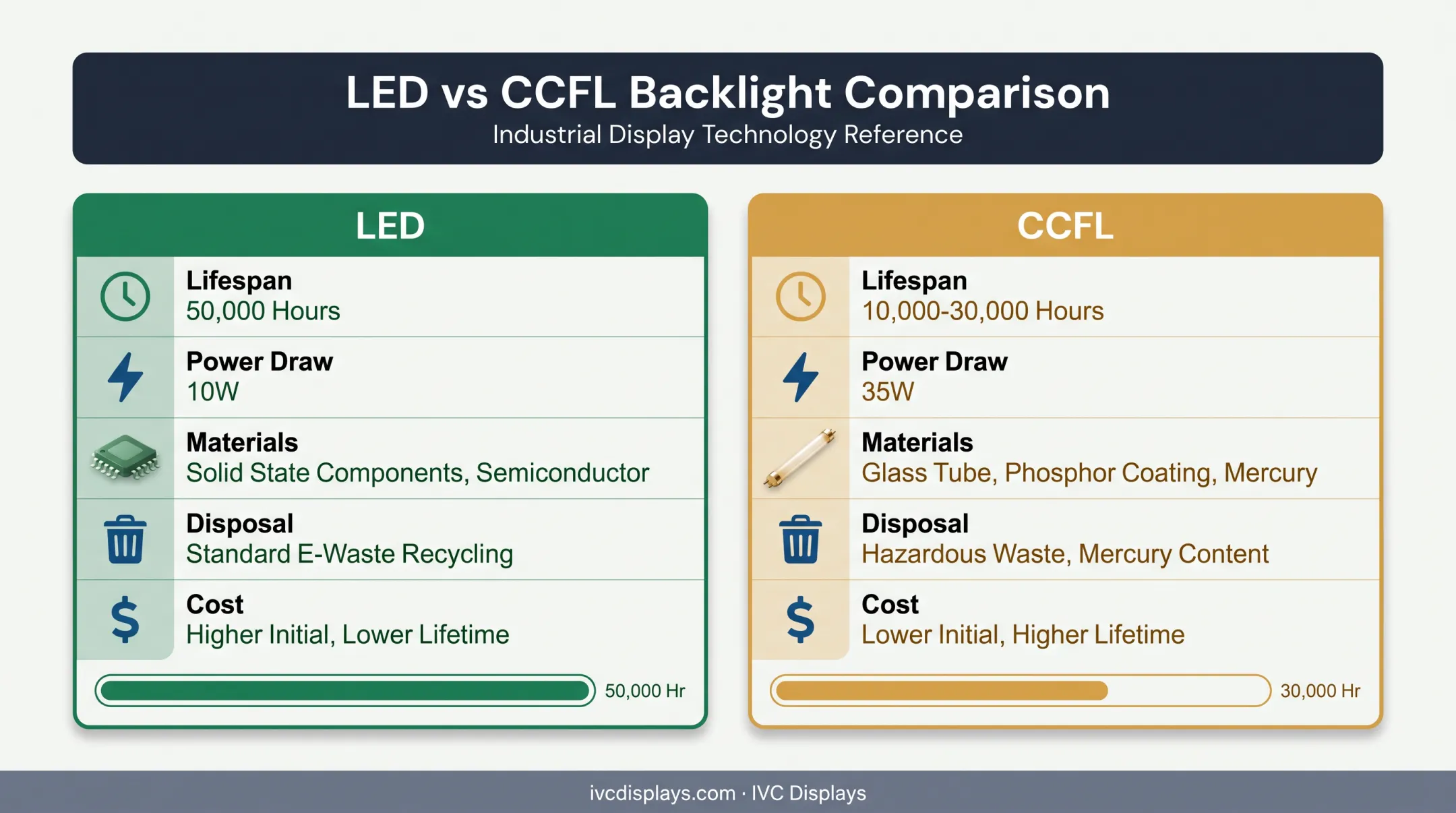

LED vs CCFL: Quick Comparison
| Factor | LED | CCFL |
|---|---|---|
| Upfront cost | Higher | Lower |
| Long-term cost | Lower (fewer replacements) | Higher (maintenance adds up) |
| Materials | Semiconductor diodes, no mercury | Glass tube, mercury gas, needs inverter |
| Rated lifespan | Up to 50,000 hours (Advantech) | Typically 10,000–30,000 hours |
| Power | Lower voltage, energy efficient | High starting voltage (270–1000V), more heat |
| Disposal | Mercury-free, easier to handle | Requires universal-waste disposal |
The lifespan gap alone is decisive. A display rated at 50,000 hours can run continuously for over five and a half years before the backlight is expected to degrade. Even at the high end of published ranges, CCFL tubes top out around 30,000 hours—roughly three and a half years of continuous use.
What Is LED Backlighting?
LED backlighting uses light-emitting diodes instead of fluorescent tubes to illuminate an LCD panel. It's now the dominant choice in rugged and industrial displays.
Why it matters operationally:
- Lower power draw means less heat inside sealed industrial enclosures
- Longer rated life cuts down on maintenance visits and unplanned downtime
- Solid-state construction resists vibration and shock, which matters for vehicle-mount and marine installations
LED backlights come in two main configurations: edge-lit and direct-lit. Direct-lit designs are preferred for high-brightness outdoor and industrial applications where displays must stay readable under harsh light.
Use Cases of LED
LED-backlit displays show up wherever uptime and durability matter more than upfront price:
- Rugged panel PCs and vehicle-mount computers on factory floors
- Marine-grade systems exposed to vibration, salt air, and temperature swings
- Oil and gas control rooms requiring long unattended operation
- Defense equipment where backlight failure creates operational risk, not only repair cost
IVC Displays' industrial monitor lines show the practical range. The NP-5XXM industrial-grade touch screen monitors carry backlight ratings of 40,000 to 50,000 hours, while the NP-5XXOPN open-frame family ranges from 20,000 to 50,000 hours depending on model size.
For comparison, a typical industrial equipment service interval might be measured in months. A 50,000-hour backlight often outlasts several full maintenance cycles on surrounding machinery.
What Is CCFL Backlighting?
CCFL, short for cold-cathode fluorescent lamp, was the standard LCD backlighting technology before LED took over. It uses a mercury-vapor-filled glass tube with a cylindrical metal-shell electrode to produce light, a design still used in some civil, military, and space-avionics information systems.
Why it's still around: existing installed bases. Swapping a working display just because a newer backlight technology exists rarely makes financial sense on its own.
CCFL tubes come in straight and U-shaped configurations, chosen based on chassis size and space constraints.
Use Cases of CCFL
You'll mostly find CCFL in equipment that predates the LED transition:
- Legacy point-of-sale systems still running on original hardware
- Older medical monitors not yet due for a hardware refresh
- Industrial HMIs on production lines that haven't hit end-of-life
CCFL aging shows up long before total failure:
- Flicker
- Dimming
- Color shift
Published lifespan ranges sit between 10,000 and 30,000 hours, well short of LED's 50,000-hour ceiling. That gap translates directly into more service calls over a display's working life.
LED vs CCFL: What's Better for Industrial Use?
The right answer depends on a few practical factors:
- Operating environment — temperature extremes, vibration, and humidity all stress CCFL glass and inverters more than solid-state LED components
- Maintenance access — hard-to-reach installations (offshore platforms, remote equipment) favor whichever technology needs fewer service visits
- Power budget — CCFL's high-voltage inverter requirement adds complexity that LED avoids
- Total cost of ownership — higher LED upfront cost is usually offset by fewer replacements and less downtime over the equipment's life
Bottom line: specify LED for any new rugged deployment. CCFL only makes sense when you're retrofitting a legacy system where swapping the entire display isn't yet justified.

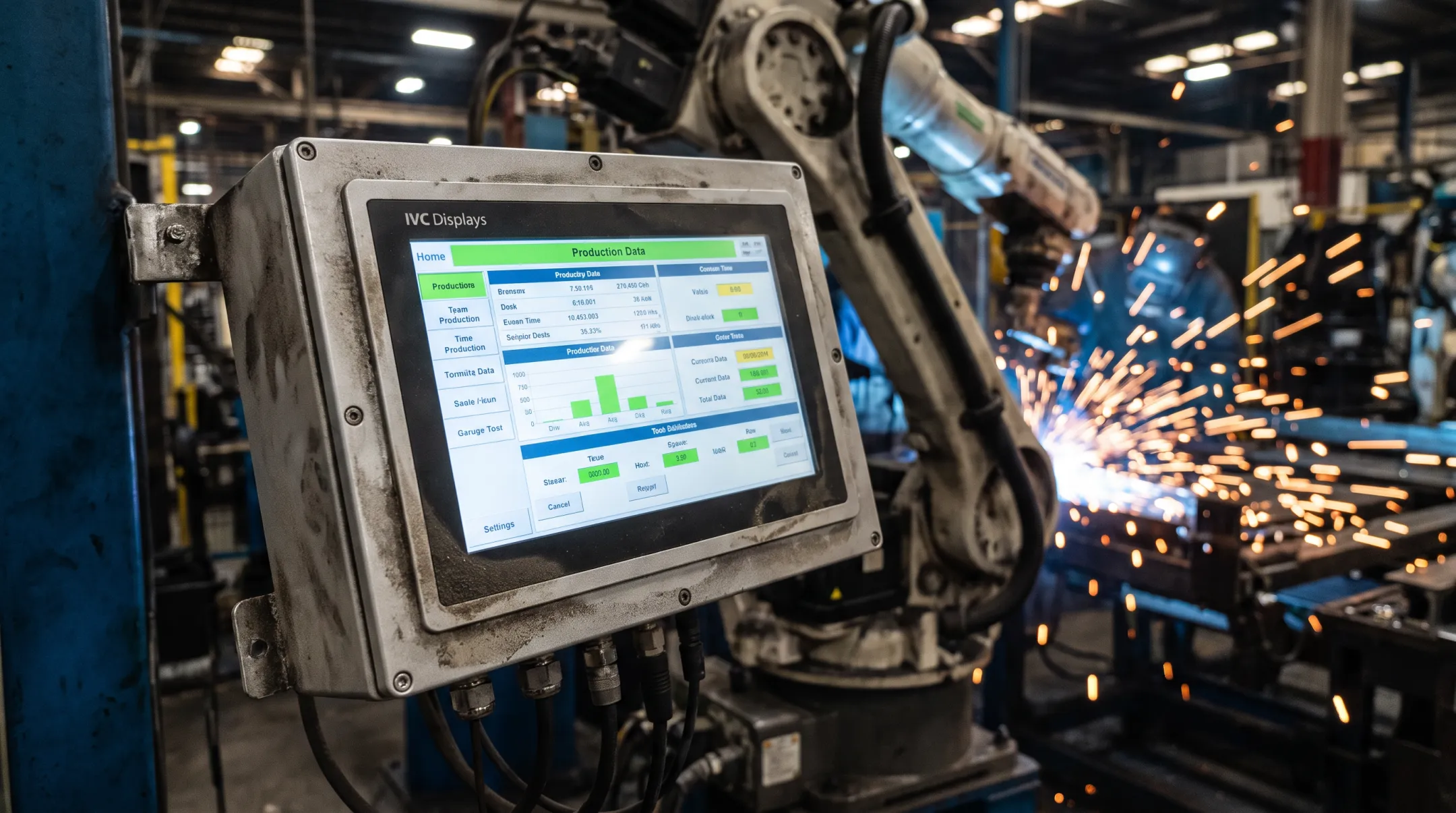

IVC Displays engineers its rugged panel PCs and industrial monitors with LED backlighting specifically because harsh manufacturing, marine, and defense environments punish anything less durable.

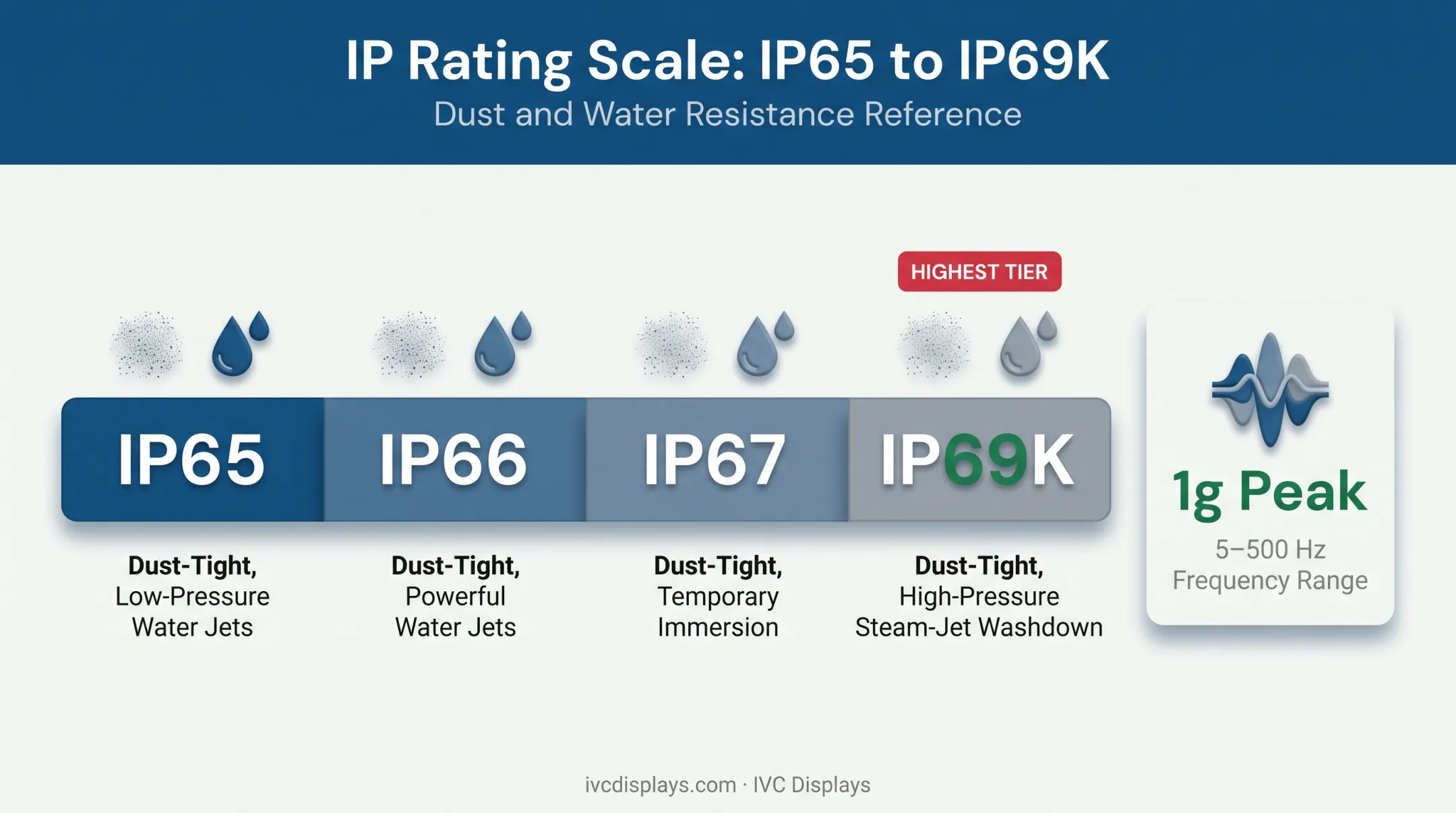

Ingress protection on these systems ranges from IP65 on standard front panels up to IP69K on fully sealed stainless-steel washdown units. Vibration tolerance is rated to 1g peak from 5–500 Hz.
Real World Example
Consider a common scenario across manufacturing and logistics operations. An HMI or panel display running on original CCFL hardware for over a decade starts showing the classic symptoms: flicker, dimming, inconsistent brightness. Eventually, the lamp or inverter fails outright.

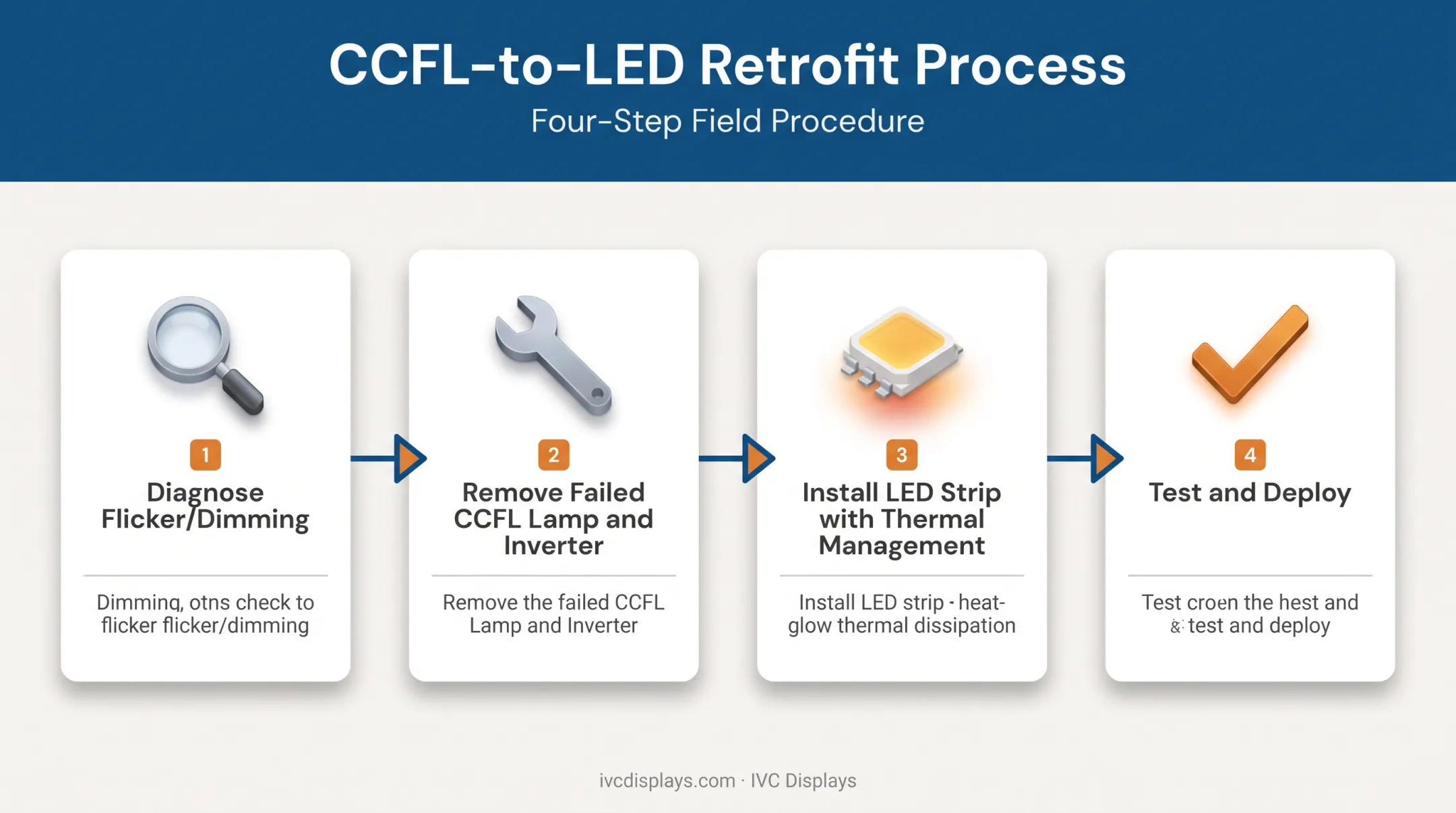

One documented field case involves a discontinued Schneider Electric Magelis HMI, where technicians replaced a failed CCFL lamp and inverter with a 24V LED strip retrofit. The original CCFL setup drew roughly 15W, and the conversion required careful thermal management since a full-brightness LED strip can generate excessive heat inside an enclosed HMI housing.
The pattern is consistent industry-wide:
- CCFL tubes degrade predictably with age, not suddenly
- Inverter failures often precede full lamp failure, causing intermittent flicker before total loss
- Retrofitting or replacing during a maintenance window beats waiting for an unplanned failure on a production line
Takeaway: legacy CCFL systems approaching end-of-life are strong candidates for a full LED display upgrade rather than a piecemeal repair.
If your team is fighting similar reliability issues with aging displays, IVC Displays' rugged panel PCs and industrial monitors (including the NP-5XXM touch screen series and NP-9XXi integrated panel PCs) are built for these production environments.
Conclusion
LED has become the default choice for new industrial and rugged display deployments. It lasts longer, draws less power, and shrugs off vibration and shock in ways CCFL glass tubes simply can't. CCFL still has a place, but that place is maintaining legacy systems until a full hardware refresh makes sense.
For manufacturing, logistics, and defense operations, this decision ties directly to the bottom line: less downtime, lower long-term maintenance spend, and displays that keep working in conditions that would degrade older technology.
Frequently Asked Questions
Which is better, CCFL or LED?
LED is better for most modern applications thanks to longer lifespan, lower power draw, and durability — especially in industrial settings where downtime is expensive.
Should I replace my CCFL display with LED?
Replacement makes sense when maintenance costs start climbing or the display is already due for a hardware refresh. If it's running fine and not due for retirement, a full swap may not be necessary yet.
What's the difference between CCFL and CFL?
CCFL (cold cathode fluorescent lamp) is used specifically for LCD backlighting. CFL (compact fluorescent lamp) is a general-purpose room lighting technology. They're built and applied differently.
Is CCFL still used in modern displays?
Largely phased out, but still found in some legacy medical devices, point-of-sale systems, and older industrial equipment that hasn't yet been replaced.
How long does an LED backlight last compared to CCFL?
LED backlights are commonly rated up to 50,000 hours, while CCFL typically ranges from 10,000 to 30,000 hours depending on the lamp and operating conditions.
Does backlight type affect readability in bright environments?
Yes. LED backlights generally support higher brightness and better contrast control, making them more readable in direct sunlight and bright industrial settings compared to CCFL.
