Yet many engineers and buyers see "TFT" printed on a spec sheet and move on without knowing what it actually means. That's a problem when reliability, viewing angle, or temperature tolerance is on the line.
This guide breaks down what TFT stands for, how it works, its strengths and weaknesses, and how to pick the right TFT display for demanding environments.
Key Takeaways
- TFT stands for Thin-Film Transistor, an active-matrix technology inside LCD panels
- Each pixel gets its own transistor and capacitor, so images stay sharper and more stable than on passive-matrix displays
- Variants such as TN, IPS, and VA balance viewing angle, color, and response speed in different ways
- Industrial builds need brightness, operating temperature, and touch specs beyond consumer-grade panels
What Is TFT Display Technology?
TFT stands for Thin-Film Transistor. It is the addressing method inside LCD architecture—not a standalone display category.
In a TFT LCD, every pixel location gets a dedicated switching transistor and storage capacitor. According to Orient Display, the transistor applies a controlled voltage and the capacitor holds that charge until the next refresh cycle. This is why "TFT" and "LCD" get used interchangeably by buyers, even though TFT technically describes the backplane inside the LCD.
A few clarifications matter here:
- TFT is not self-emissive. It relies on a backlight and modulates that light through liquid crystals, unlike OLED, which generates its own light per pixel.
- Modern TFT modules are frequently paired with IPS or VA enhancements to improve contrast, viewing angle, and color fidelity.
- The "TFT vs. LCD" distinction is mostly academic for buyers—what matters is which subtype (TN, IPS, VA) sits inside the module.
How TFT Display Technology Works

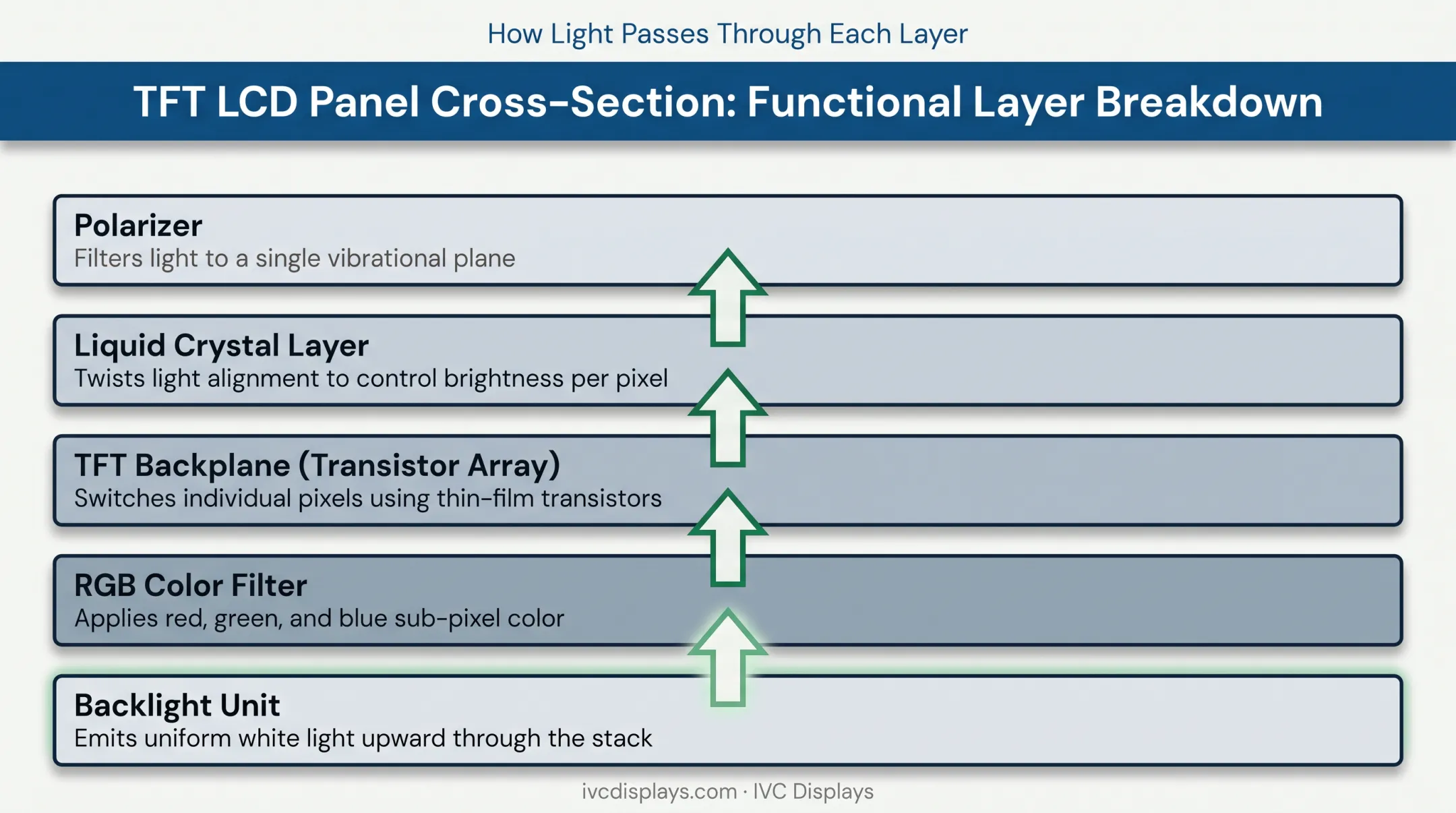

A TFT LCD panel is built from four functional layers:
- Polarizer – controls whether modulated light can pass through
- Liquid crystal layer – changes alignment based on applied voltage
- TFT backplane – the transistor array that controls each pixel's voltage
- RGB color filter – assigns red, green, or blue to each subpixel
Voltage applied at each transistor shifts the liquid crystal's alignment, which determines how much backlight passes through that subpixel (Topway Display). Combining red, green, and blue subpixels at varying intensities produces full-color images with precise gray-level control.
Why Per-Pixel Control Matters
Passive-matrix displays address pixels in groups using crossing conductors, with no dedicated switching device at each intersection. That causes ghosting and lag. TFT's per-pixel transistor eliminates this by holding charge independently at every location (Orient Display).
Real-world numbers vary by model. One industrial monitor manual lists a 14 ms typical response time with 49-76 Hz vertical scan, supporting formats up to 1280 x 1024 at 75 Hz. Don't treat any single figure as a universal TFT benchmark — always check the exact panel datasheet, since response-time measurement methods differ between manufacturers.

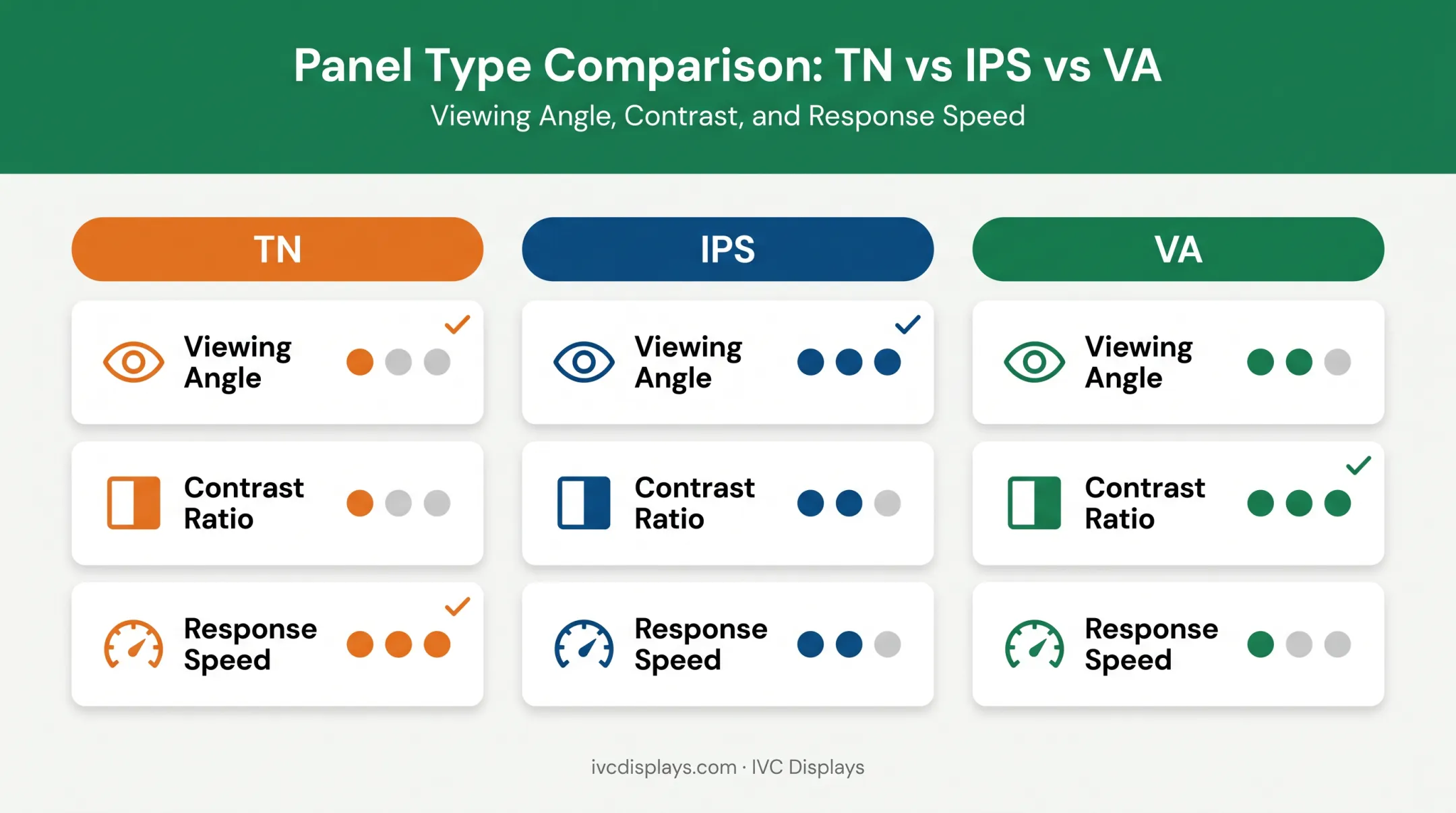

Types of TFT LCD Technology
Not all TFT panels behave the same. The subtype determines viewing angle, color performance, and speed.
Twisted Nematic (TN)
TN is the earliest and cheapest TFT type. It delivers fast response times but suffers from narrow viewing angles and limited color accuracy, with typical ratings around 170/160 degrees on basic panels. It suits fixed-view, speed-sensitive applications, but is risky when multiple operators view the screen from different positions.
In-Plane Switching (IPS)
IPS rotates liquid crystals in-plane rather than perpendicular, delivering excellent viewing angles (often 178/178 degrees) and consistent color across viewing positions. This makes IPS the safer default for industrial HMIs viewed from multiple angles or heights.
Vertical Alignment (VA)
VA sits in the middle: better contrast than TN (often 3,000:1 or higher) but without IPS-level color consistency. Choose VA when dark-level contrast matters more than color-critical accuracy.
| Type | Viewing Angle | Contrast | Speed |
|---|---|---|---|
| TN | Narrow | Lower | Fastest |
| IPS | Excellent | Moderate | Moderate |
| VA | Good | Highest | Moderate |
Advantages and Disadvantages of TFT Displays
Advantages:
- High-resolution output with precise per-pixel control
- Fast image response and flicker-free, stable images
- Modular adaptability: easy to add touch layers, optical bonding, or protective coatings
- Long-term availability for OEMs that need consistent multi-year sourcing
That last point is often overlooked. Consumer display components change frequently and get discontinued fast, which forces redesigns. OEMs building equipment with a 5-10 year lifecycle need panels that won't disappear from the supply chain mid-production.
Disadvantages:
- Basic TN panels show viewing angle and color shift issues without IPS or VA enhancement
- Continuous power required to hold an image, a real trade-off for battery-powered or low-energy devices
- Lower-quality panels can show backlight bleeding or uniformity issues
- Touch integration or EMI protection increases design complexity
TFT vs. OLED: Which Is Better?
The better choice depends on the application—not a blanket winner.
OLED offers deeper blacks and thinner form factors since it's self-emissive. But it carries risks that matter for industrial buyers:
- Burn-in and image retention on static HMI screens that show the same layout for years
- Higher cost, especially at larger panel sizes
- Weaker long-term sourcing versus TFT’s established supply chains
For industrial and rugged equipment with static dashboards or control interfaces, TFT remains the practical choice. Lower cost, stronger long-term availability, and no burn-in risk outweigh OLED’s image-quality edge in these settings.
TFT Displays in Industrial and Rugged Applications
Industrial buyers prioritize reliability and environmental tolerance over flashy specs. These factors matter more here than in consumer electronics:

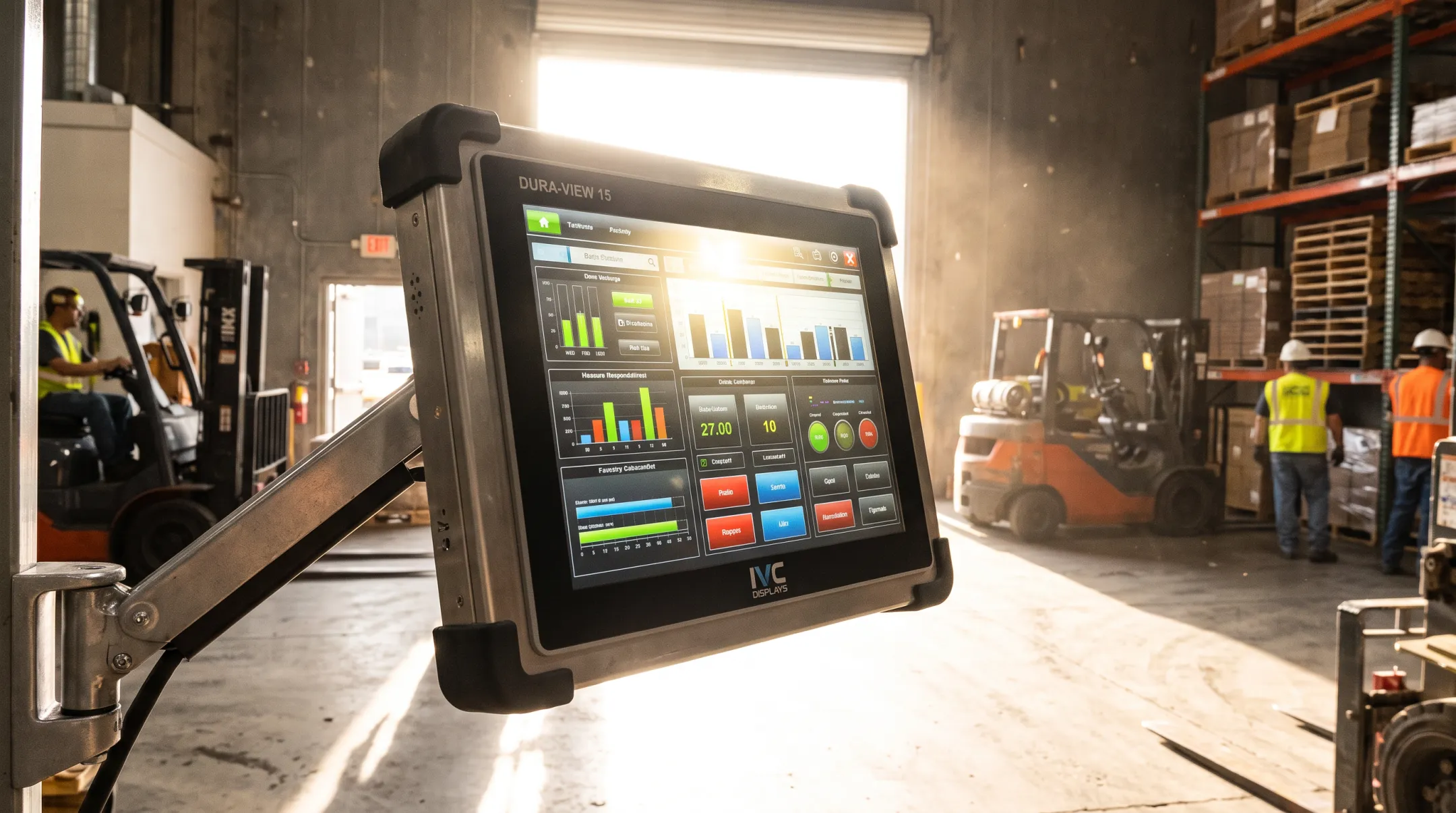

Brightness and Outdoor Visibility
Higher brightness helps in outdoor or high-glare settings. IVC Displays, for example, offers configurations ranging from 350 to 1,000 nits across its industrial touch panel monitor lines, with the 1,000-nit option built for stronger visibility in bright environments.
Temperature Range
Operating temperature range varies by product family:
- Standard rugged panel PCs: -20°C to +60°C
- Heavy-duty industrial computers: up to +70°C
- Rugged industrial monitors: 0°C to +50°C
Touch Technology
- Resistive touch works with gloves — useful for industrial control environments
- Capacitive (PCAP) touch supports multi-touch interaction and higher light transmission (roughly 90% vs. 80% for resistive)
Vibration, Shock, and Enclosure Ratings
Mounted or vehicle-based displays need to survive vibration and shock. Always request the exact test method and severity level — a MIL-STD-810 reference alone doesn't tell you the pulse duration, axes, or pass criteria used.
For sealed environments, enclosure rating matters as much as the panel itself:

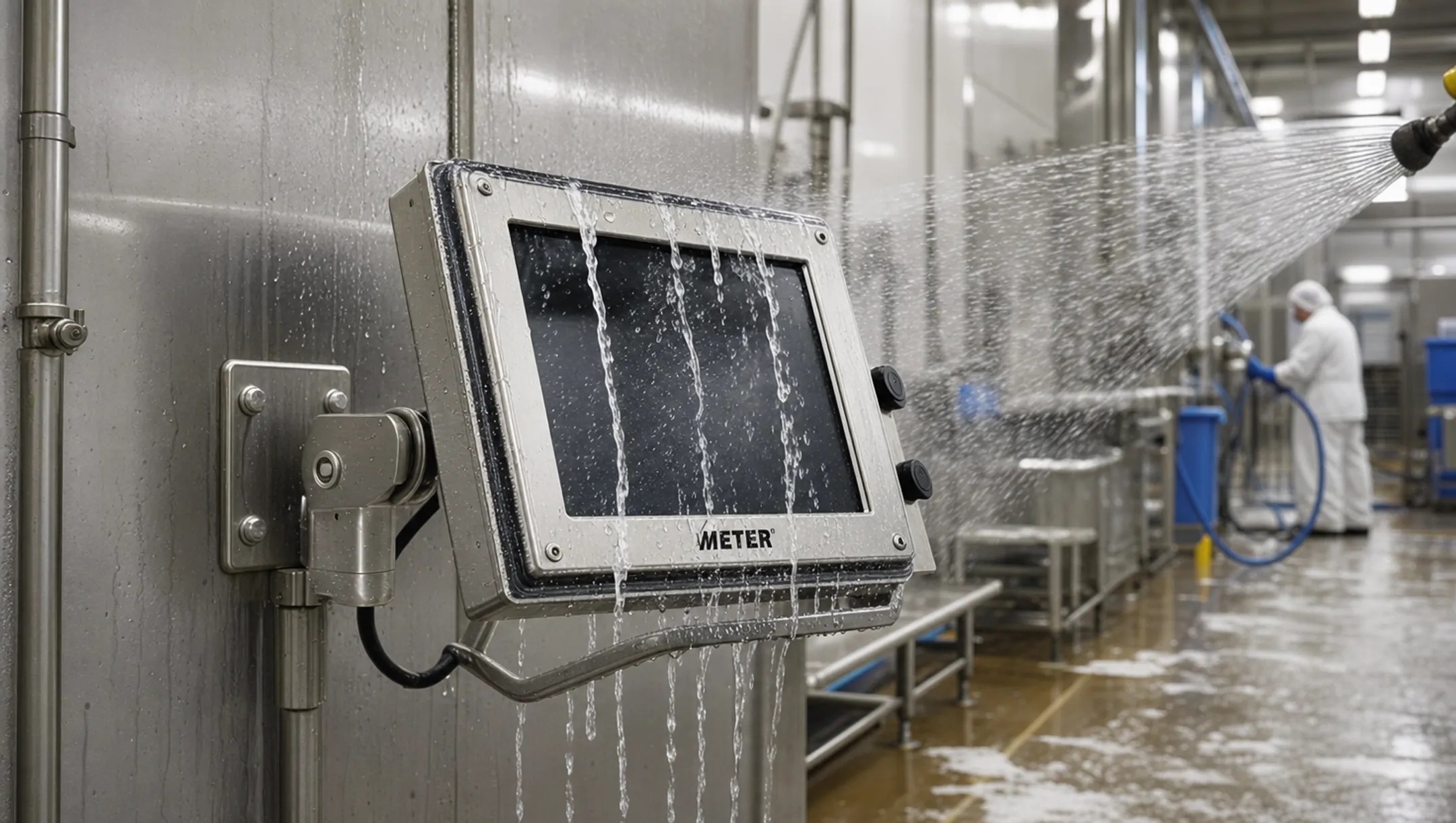

- IP66/IP67/IP69K stainless-steel housings for washdown and sanitation-heavy settings such as food processing
- Aluminum housings with anti-corrosion coating and IP65-rated front panels for maritime and offshore use
IVC Displays builds rugged panel PCs and industrial monitors around TFT technology in these configurations—so manufacturing, automation, marine, and logistics teams can match brightness, temperature, touch, and enclosure ratings to sites where commercial displays fail.
Frequently Asked Questions
What does TFT stand for in electronics?
TFT stands for Thin-Film Transistor, an active-matrix technology used within LCD panels. Each pixel gets its own transistor and capacitor for precise voltage control.
What is TFT used for?
TFT displays appear in smartphones, industrial HMIs, medical devices, and rugged equipment across manufacturing, marine, and logistics settings. It's the most widely used flat-panel display technology today.
Is TFT better than OLED?
It depends on the application. TFT typically wins on cost, long-term availability, and burn-in resistance, making it the stronger choice for industrial settings with static interfaces.
What is a TFT LCD phone?
A TFT LCD phone uses active-matrix LCD technology for its display rather than OLED or AMOLED. It relies on a backlight and liquid crystals instead of self-emissive pixels.
How long do TFT displays typically last in industrial use?
Lifespan depends largely on backlight life, often rated for tens of thousands of hours to half-brightness. Ruggedized designs with proper thermal management extend operational life well beyond consumer-grade panels.
What's the difference between TFT and IPS displays?
IPS isn't a competitor to TFT. It's a type of TFT technology. IPS describes how the liquid crystals are arranged within the TFT LCD structure to improve viewing angles and color.
