Get it wrong and you end up with loose panels, stripped VESA threads, or a backlight that fails early from trapped heat. This guide walks through the exact steps, tools, and mounting standards you need, plus the mistakes that trip up even experienced installers.
TL;DR
- Open frame monitors mount via VESA patterns, threaded inserts, or side-tab brackets, depending on chassis design
- Checking VESA size, clearance, and weight rating upfront prevents most installation failures
- Correct torque and ventilation clearance directly affect long-term durability
- Common mistakes: wrong screw length, ignored thermal clearance, mismatched VESA patterns
- Your mounting method (front bezel, rear, side tab) should match the enclosure's access direction
How to Mount an Open Frame Monitor
Step 1: Identify the Monitor's Mounting Pattern and Chassis Specs

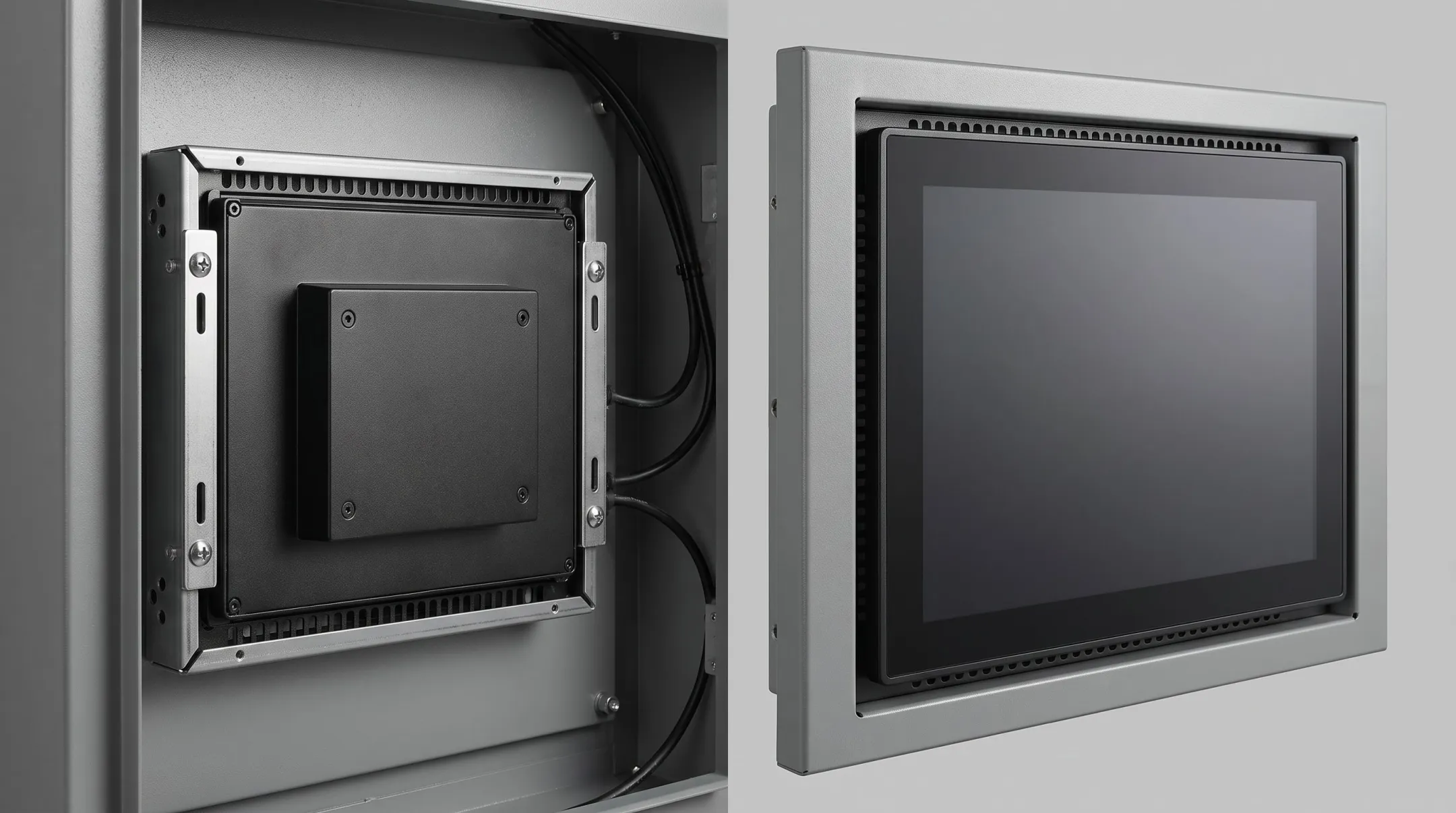

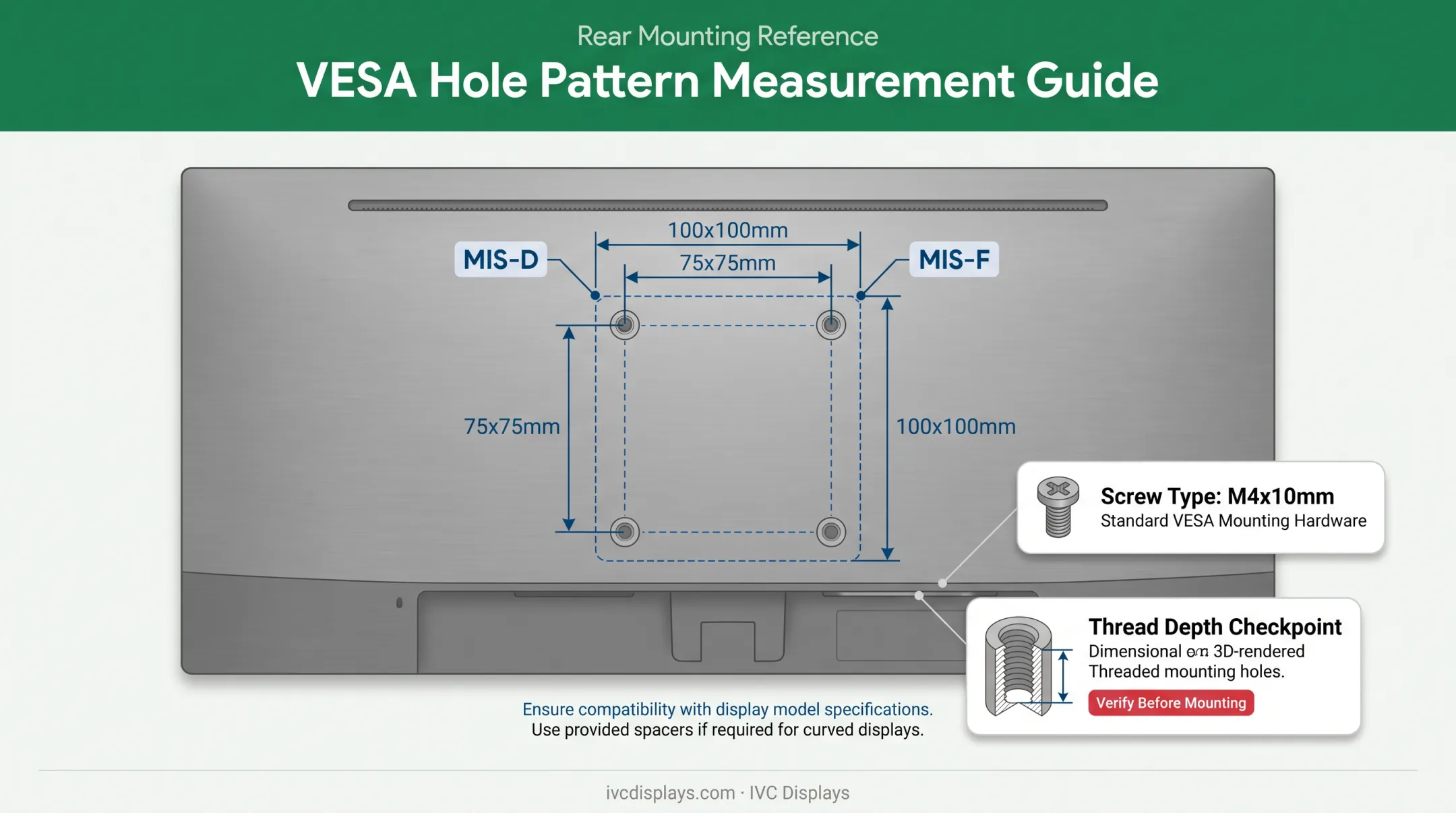

Start by checking the chassis rear or sides for a VESA hole pattern or threaded insert locations. According to Ergotron's VESA mounting guide, the MIS-D interface commonly uses 75×75mm or 100×100mm spacing with M4×10mm screws, while larger MIS-F patterns can require M6 or M8 hardware.
Don't assume. Confirm against your specific display's drawing.
A few checks before you buy any bracket:
- Measure hole spacing directly on the chassis (don't guess from screen size)
- Confirm thread depth so screws don't bottom out or fall short
- Note the monitor's weight so your bracket carries an appropriate load rating
Steel-chassis open frame monitors, like the panel-mount designs used in many industrial series, don't always publish a VESA pattern — some rely on side-tab or flange mounting instead. Check the manufacturer's mechanical datasheet rather than assuming compatibility.
Step 2: Prepare the Enclosure or Mounting Surface
Cut the enclosure opening to match the active display area plus bezel overlap. Leave a small margin so you can square the panel during final assembly.
Clearance matters more than most installers expect. Open-frame electronics need airflow or a conduction path to shed heat. Industry guidance from US Micro Products points to at least 25mm of clearance on ventilated sides, or a thermal-pad connection if you're relying on conduction cooling instead of airflow.
Before finalizing your cutout:
- Verify the mounting surface won't flex under the monitor's weight
- Route cable pathways before drilling final holes
- Check that vents on the chassis aren't blocked by brackets or enclosure walls

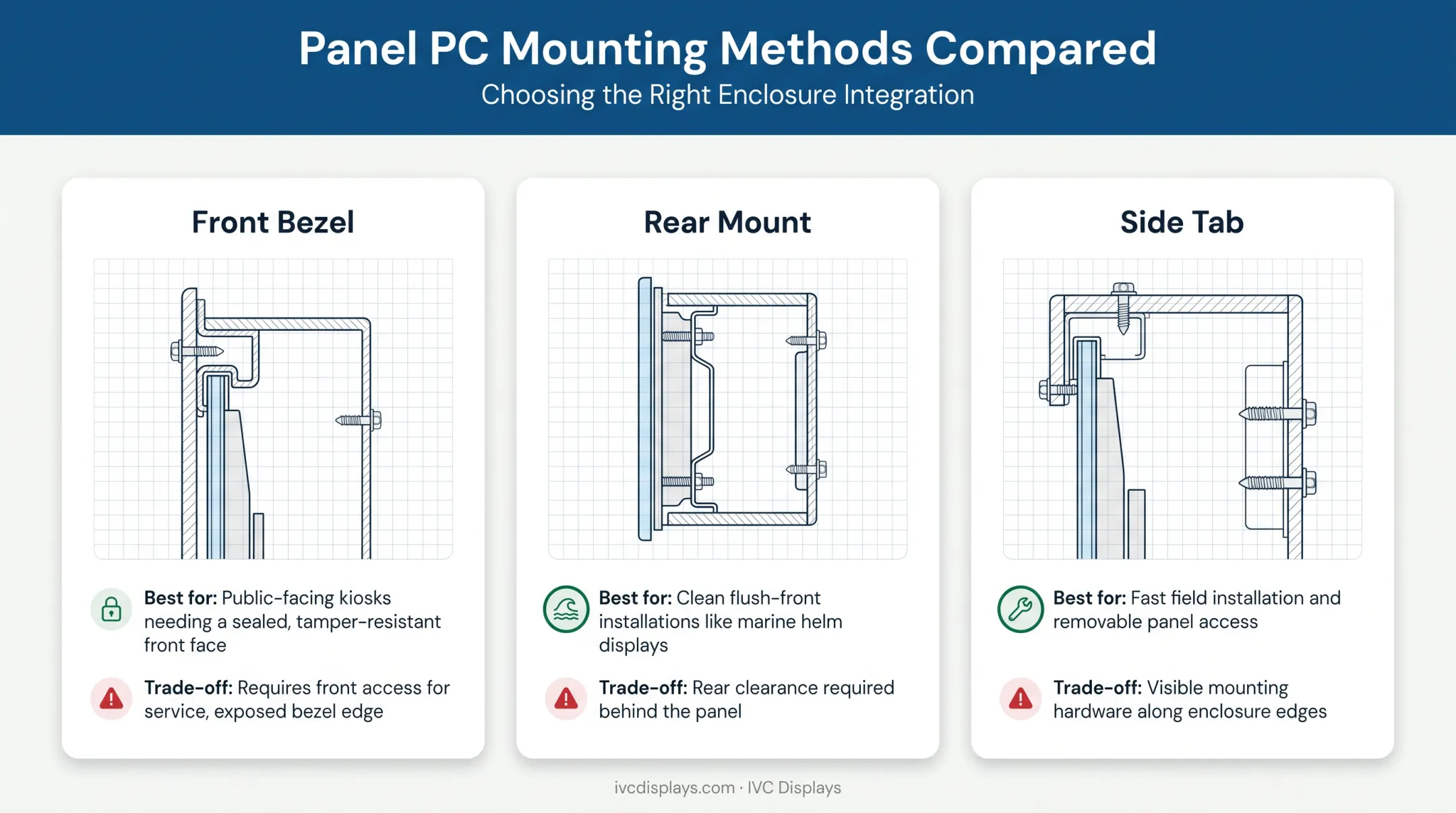

Step 3: Select the Mounting Method
Your enclosure's access direction dictates which mounting style makes sense.
| Method | Best for | Trade-off |
|---|---|---|
| Front bezel | Front service access, slight visible lip acceptable | Less flush finish |
| Rear mount | Flush glass-to-panel look, no visible bezel | Requires rear access for service |
| Side tab | Maximum vibration resistance, transportation/industrial use | More complex chassis integration |
Side-tab mounting screws directly into the enclosure's internal frame at multiple points, making it the most vibration-resistant option when a chassis lacks (or doesn't need) a VESA plate. It's a common choice in transportation and heavy-vibration equipment.
Step 4: Secure the Monitor and Connect Cables
This is where rushed installs go wrong. Uneven tightening compresses gaskets unevenly, which can compromise sealing even on IP-rated assemblies.

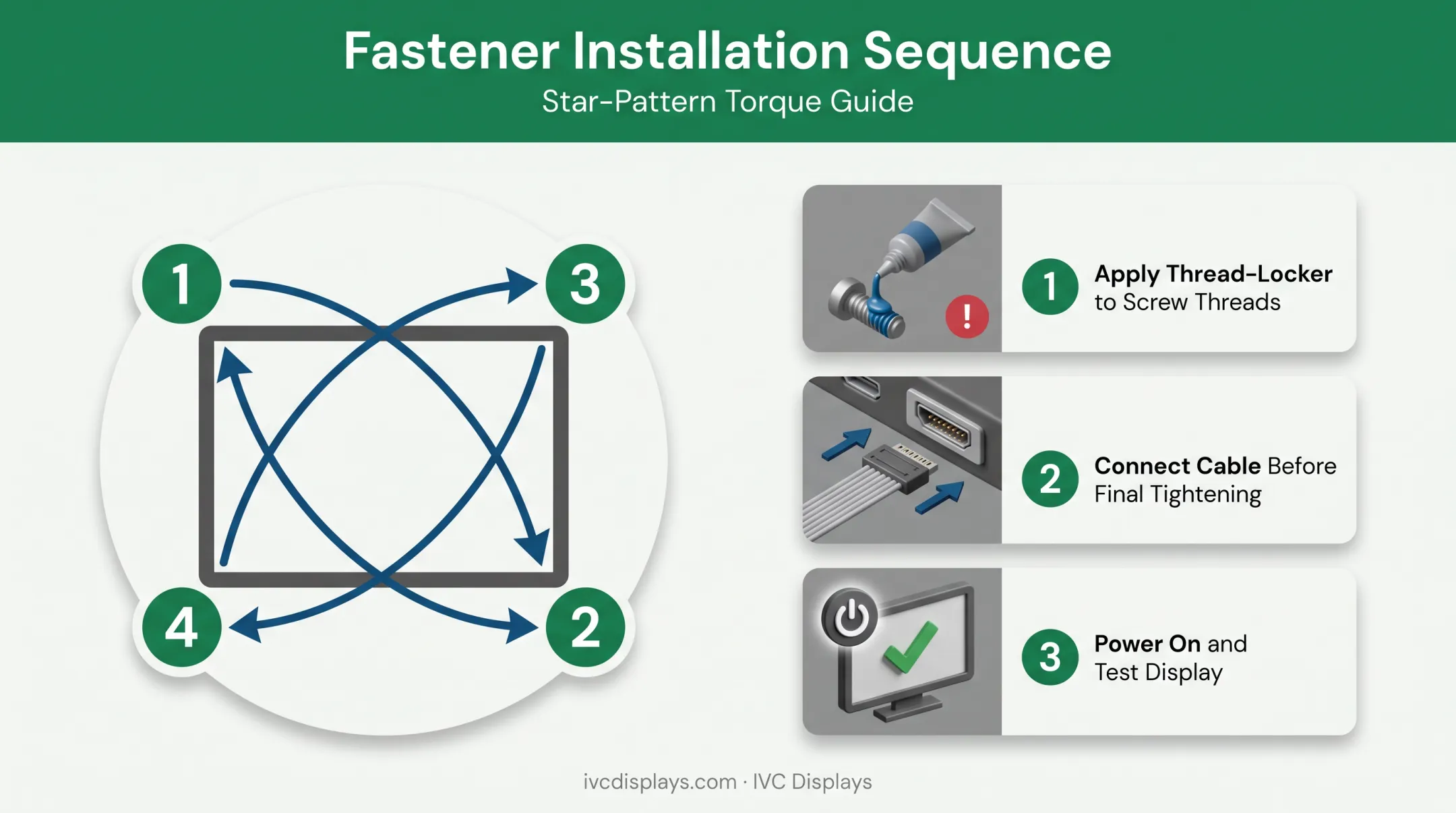

- Insert fasteners in a star pattern, tightening in stages rather than fully torquing one screw at a time
- Apply thread-locker on fasteners in vibration-prone applications. Use a medium-strength, oil-tolerant formula that tolerates minor surface contamination without over-bonding serviceable threads
- Connect video and power cables before final tightening to avoid pinching wires against the chassis or enclosure wall
- Power on and test touch function before sealing the enclosure closed
Skipping that final test step is a classic mistake. Reopening a sealed enclosure to fix a dead pixel or unresponsive touch layer defeats the purpose of careful gasket work.
When Should You Mount an Open Frame Monitor This Way?
Standard VESA or bracket mounting works well for most integrations, but it's not universal. Custom brackets become necessary when the enclosure doesn't follow standard spacing.
This approach fits best for:
- Kiosks and industrial HMI panels
- Equipment integration where a finished bezel isn't required
- Standard-depth enclosures with predictable cable routing
It becomes inefficient when the enclosure lacks standard VESA spacing, or when extreme vibration and impact demand a reinforced custom frame instead.
Environment matters too. Washdown settings common in food processing, or extreme-temperature industrial plants, typically need ruggedized hardware beyond a standard open-frame chassis. IVC Displays' stainless steel waterproof systems, for example, use sealed 304 or 316 stainless enclosures rated up to IP69K for these conditions. Open-frame monitors meant for internal enclosure mounting generally aren't rated for direct washdown exposure.
What You Need Before Mounting an Open Frame Monitor
Preparation prevents cracked glass, stripped threads, and failed seals during and after installation.
Equipment and system requirements:
- VESA-compatible bracket or arm (confirm hole spacing first)
- Correct bolt size: M4 is common on smaller VESA patterns; larger displays may need M6
- Torque driver or manual screwdriver with the correct bit size
- Thread-locker rated for vibration environments
Materials and site conditions:
- Enclosure cutout tolerances verified against the drawing
- Gasket material compatible with your environment (oils, washdown chemicals, temperature)
- Cable lengths sufficient for the final routing path
Skill and safety readiness:
- Basic mechanical assembly skill
- ESD precautions when handling driver boards
- Weight verification before lifting or mounting larger displays solo
Key Parameters That Affect Mounting Results
Your outcome depends on matching hardware specs to the monitor's chassis and the installation environment.
- VESA pattern compatibility: Mismatched hole spacing prevents secure attachment. Forcing an incorrect pattern onto a bracket can cause flex or create a drop hazard.
- Screw length and torque: Oversized screws can puncture components behind the chassis; under-torqued fasteners loosen under vibration. Uneven torque also compresses gaskets and weakens any IP-rated seal.
- Ventilation clearance: Too little airflow traps heat from the backlight and driver board, which can trigger premature backlight failure or thermal shutdown in high ambient temperatures.
- Mounting orientation: Front, rear, and side-tab mounts differ in serviceability and vibration resistance. The wrong choice raises long-term failure risk, especially where equipment vibration is constant.
Common Mistakes When Mounting an Open Frame Monitor
Most installation failures trace back to a handful of repeat offenders:
- Skipping VESA verification before ordering brackets or arms, leading to incompatible mounts and rework
- Overtightening or under-tightening fasteners, damaging threads or compromising seals
- Ignoring manufacturer clearance guidance for heat dissipation, leading to shortened backlight life
- Failing to secure cables before final assembly, resulting in pinched or disconnected wiring once the enclosure closes
None of these mistakes are hard to avoid. Check the specs before assembly instead of during troubleshooting.
Alternatives to Mounting an Open Frame Monitor Yourself
Standard VESA or bracket mounting isn't always the right call.
Panel mount monitors work better when you need a finished front bezel and gasket seal without designing custom bezel hardware yourself. The trade-off is higher unit cost and less design flexibility than a bare open-frame chassis.
Custom enclosure integration services make sense for non-standard shapes, extreme environments, or high-volume OEM production runs. IVC Displays offers custom industrial hardware solutions built around specific mounting and enclosure requirements when off-the-shelf brackets won't fit. Expect longer lead times and higher upfront engineering cost than catalog hardware.
All-in-one rugged panel PCs eliminate the separate-mounting problem by integrating display and compute into one enclosure. That's a strong option when you won't need to upgrade the compute hardware independently later.
Conclusion
Mounting an open frame monitor correctly means matching VESA pattern, screw specs, torque, and clearance to both the display and its enclosure. Most failures trace back to skipped preparation: an unverified VESA pattern, ignored clearance guidance, or mismatched screws.
Get those details right before you install, and the mount stays serviceable and reliable—especially in industrial settings where a failed mount means real downtime.
Frequently Asked Questions
What is an open frame monitor?
An open frame monitor is a display module without an outer casing, built for integration directly into enclosures, kiosks, and industrial equipment. The host equipment provides the finished housing.
Can you mount a monitor without a VESA pattern?
Yes. Threaded inserts, flange mounts, or side-tab brackets work when a chassis lacks a standard VESA hole pattern, particularly on steel-chassis industrial displays.
What are the different types of monitor mounts?
Front bezel, rear mount, side tab, and VESA arm/bracket mounts are the main options. Each suits a different service-access need and vibration environment.
What size screws are used to mount an open frame monitor?
M4 bolts are common on standard VESA patterns like MIS-D. Larger displays may require M6 or M8 hardware. Always confirm against the specific monitor's mechanical drawing rather than assuming by screen size.
How much clearance do I need around an open frame monitor?
A common industry guideline is at least 1 inch (25 mm) on all sides for airflow, cable routing, and service access. Confirm against your specific model's thermal documentation when possible.
Do I need special tools to mount an open frame monitor?
A torque driver with the correct bit size and a compatible thread-locker cover most installations. Vibration-heavy applications may also call for locking cables or industrial connectors.
