Many buyers focus on resolution or processor specs and treat screen size as an afterthought. That's a mistake. The wrong size causes mounting conflicts, ergonomic strain, and system incompatibility that surface only after installation. This guide covers standard size ranges, how size relates to resolution and aspect ratio, measurement standards, and the selection criteria that actually matter in the field.
TL;DR
- LCD screens are measured diagonally in inches; industrial panels commonly run from about 7" to 24"+
- Sizes fall into small (up to 7"), medium (7.1"–13.5"), and large (13.6"+) categories
- Aspect ratio (4:3, 16:9, 16:10) and size together set the usable display area
- Screen size and resolution are separate specs; both must fit the job for clarity in harsh environments
- The right size depends on mounting space, viewing distance, data density, and ruggedization needs
What Screen Size Represents in LCD Displays
Screen size is the diagonal measurement of the active viewable area, expressed in inches. It's measured corner to corner across the illuminated pixel area, not the bezel or the overall enclosure.
This spec gets fixed at manufacturing. Unlike brightness or resolution settings, you can't adjust it later. Once you've selected a 10.1" panel, that's your diagonal footprint for the life of the installation.
Size doesn't work alone. It interacts with:
- Resolution – pixel count within that diagonal space
- Pixel density – how sharp the image appears at that size
- Aspect ratio – the width-to-height proportion shaping usable layout
For system designers, screen size becomes a hard constraint on enclosure dimensions, panel cutouts, and overall panel PC form factor. Get it wrong, and you're re-cutting a control cabinet or redesigning a dashboard mount.

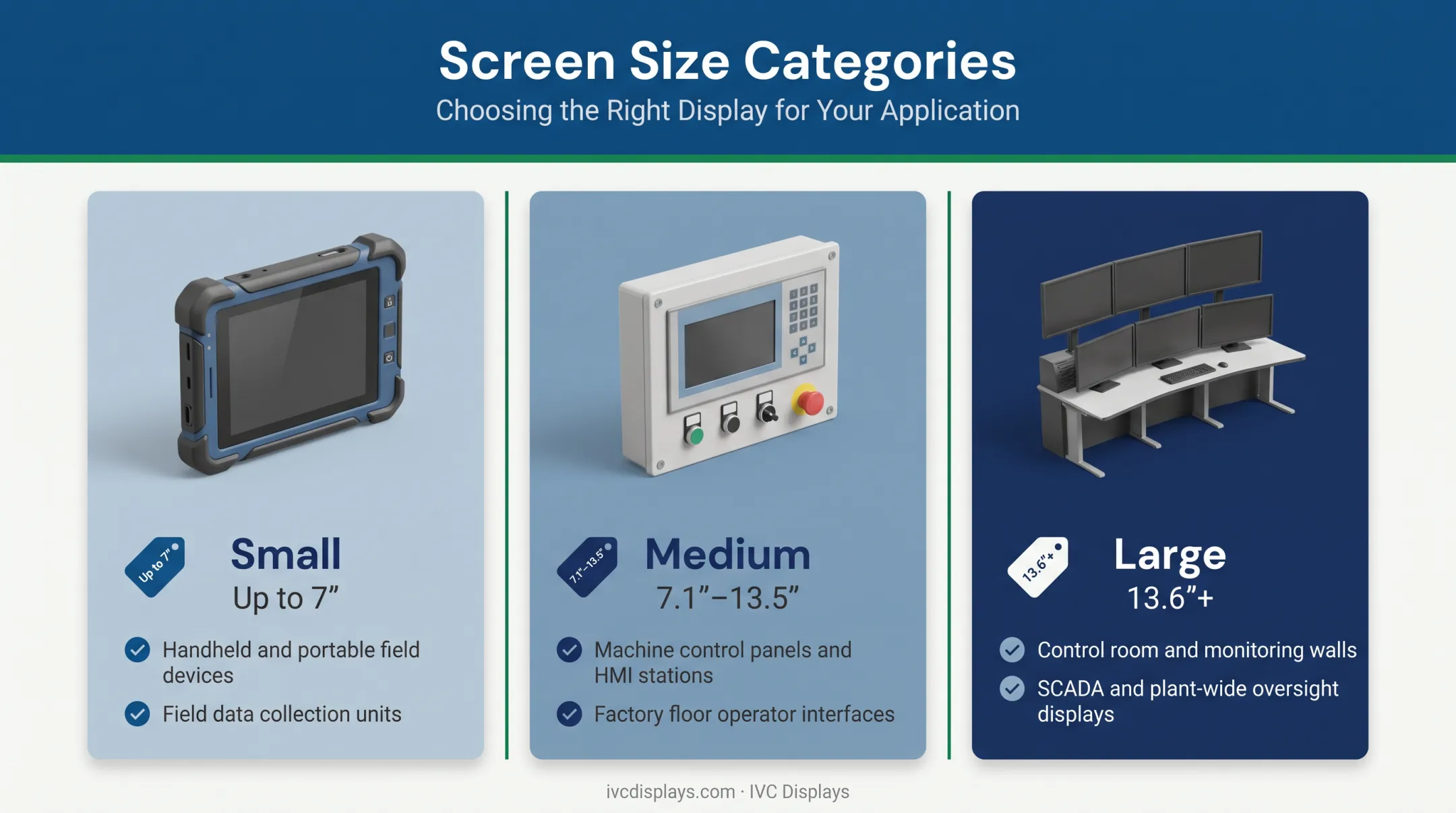

Standard Size Categories and Their Applications
Industrial catalogs don't follow a universal standards-body taxonomy for "small," "medium," and "large." These groupings are practical shorthand based on common product offerings:
Small (up to 7") Best fit for handheld instruments, compact HMIs, and portable diagnostic gear.
- Low cost and simple integration
- Minimal mounting footprint
- Common in space-constrained automation and SCADA interfaces (including IVC Displays 7" panel PC and industrial monitor options)
Medium (7.1"–13.5") The workhorse range for control panels and embedded systems. Common sizes include 10.1" and 12.1", which balance readable detail with a manageable footprint.
- Fits most machine-side HMI and OEM panel cutouts
- Enough area for multi-field process screens without a full console
- Widely stocked across industrial panel PC, open-frame, and marine lines (for example, IVC's 12.1" marine panel PC for shipboard control)
Large (13.6" and up) Built for multi-window views, complex data visualization, and control-room installs. Sizes like 15.6", 19", and 24" are common in panel PC and marine-grade families.
Industrial panels in this range often pair the larger diagonal with:
- 350 or 1,000-nit brightness for sunlight-readable or high-glare areas
- Wide operating windows (stainless washdown models, for example, run -10°C to 60°C)
Factors That Influence Screen Size Selection in Real-World Operation
Lab-tested ideal sizes rarely match what actually fits on a factory floor. Real deployments run into space, mounting, and environmental limits that override the "bigger is better" instinct.
Mounting space and cutout limitations. Control cabinets, machinery enclosures, and vehicle dashboards have fixed openings. A 15" panel that reads beautifully on a bench might not clear the cutout in an existing cabinet.
Viewing distance and ergonomics. OSHA recommends monitor viewing distances of 20–40 inches for standard workstations, with the screen top at or slightly below eye level (OSHA's workstation guidance).
Control rooms need larger displays for group visibility. Handheld and vehicle-mount devices need compact screens viewed at arm's length.
Data density requirements. A simple status indicator doesn't need the same real estate as a SCADA dashboard showing multiple process windows simultaneously. Match the size to how much information the operator must parse at once.
Environmental exposure. Dust, moisture, vibration, and temperature extremes often dictate not just screen size but the entire enclosure strategy. Higher-rated large panels typically need sealed bezels and reinforced mounting.

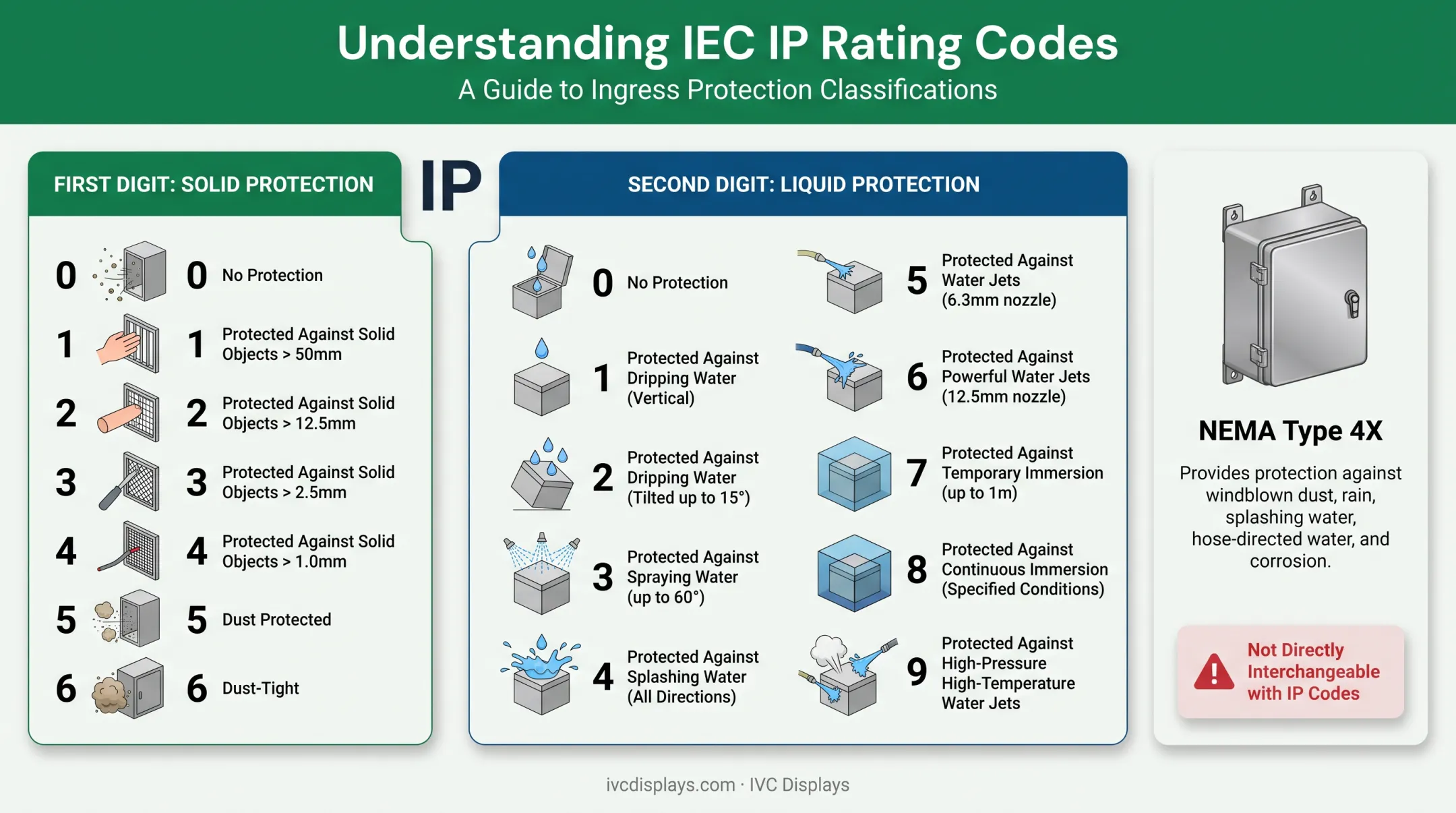

Key rating systems to check:
- IEC IP codes — two numerals for solids (0–6) and liquids (0–9); see IEC's IP ratings explainer
- NEMA Type 4X — common for outdoor and washdown use; not directly interchangeable with IEC IP codes
Screen Size vs Resolution vs Aspect Ratio: Key Differences
These three specs get conflated constantly, but they measure entirely different things:
| Spec | What It Measures | Example |
|---|---|---|
| Screen size | Physical diagonal dimension | 10.1 inches |
| Resolution | Pixel count (horizontal × vertical) | 1280 × 800 |
| Aspect ratio | Width-to-height proportion | 16:10 |
A larger screen isn't automatically sharper. A 15" panel at 1024×768 can look softer than a 10.1" panel at 1280×800, because pixel density (not raw diagonal size) drives perceived sharpness.
Common Industrial Size-Resolution Pairings
Across IVC Displays' catalog, those density tradeoffs show up in typical size-resolution pairings:
- 7": 800 × 480
- 10.1": 1280 × 800
- 12.1": 800 × 600 or 1024 × 768 depending on model
- 17": 1280 × 1024
- 19": 1280 × 1024
- 21.5" and 24": 1920 × 1080

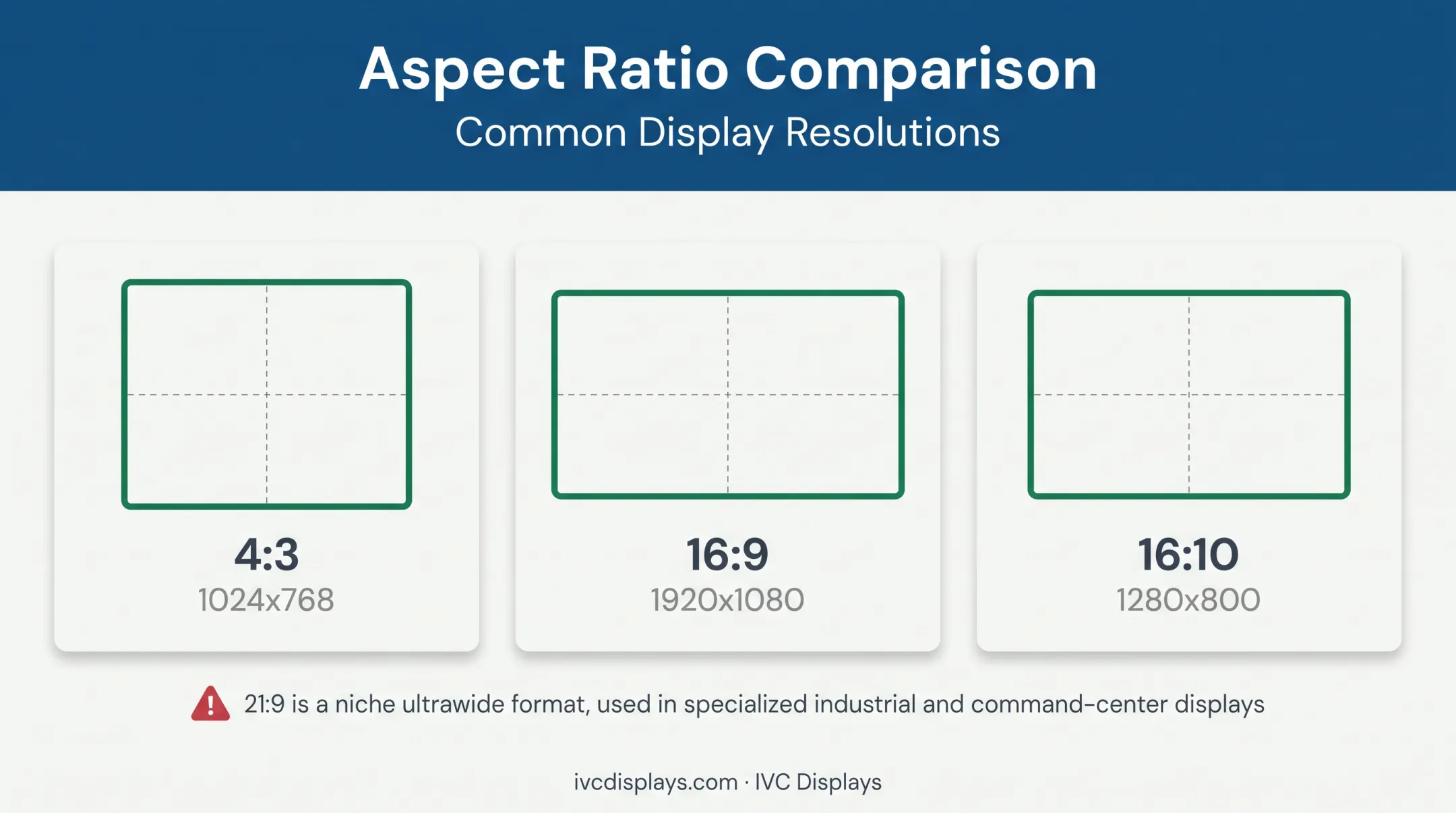

Aspect ratio isn't always published separately on industrial datasheets; it's often implied by the pixel pairing:
- 4:3: Still common in open-frame monitors
- 16:9 and 16:10: Dominate newer panel PC and monitor lines
- 21:9: Appears in niche applications, not general industrial catalogs
How Screen Size Is Measured, Specified, and Validated
Screen size shows up on datasheets as a single number, but validating it properly takes more digging.
Specification and Documentation
Manufacturers list diagonal inches on the datasheet, often alongside active-area dimensions in millimeters. Here's the catch: nominal panel size and true active/viewable area aren't always identical. A "15-inch" panel's actual illuminated area may measure slightly smaller once you account for construction tolerances.
Industry practice now follows the Information Display Measurements Standard from SID, which succeeded VESA's Flat Panel Display Measurement standard. It covers roughly 140 distinct display measurements.
Measurement and Verification

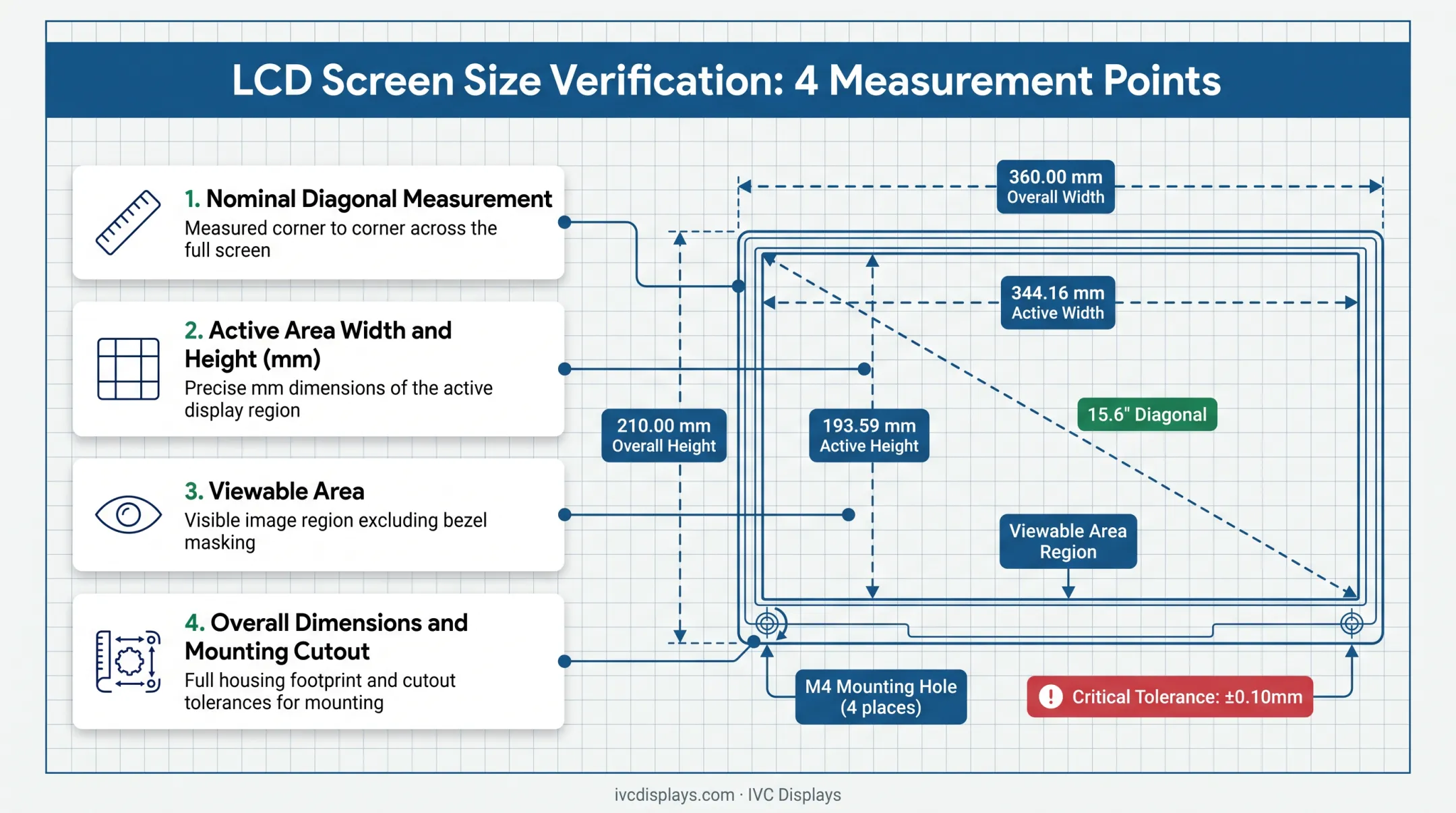

To verify size claims, measure diagonally corner to corner across the visible display area only. Never include the bezel. When specifying a panel for a build, request four separate data points:
- Nominal diagonal (the marketed size)
- Active area width and height in millimeters
- Viewable area (may exceed the active pixel area)
- Overall dimensions and mounting cutout from the mechanical drawing
Discrepancies between advertised size and true active area happen across manufacturers. Don't assume a rounded catalog number matches your received unit. Measure it.
Choosing the Right LCD Screen Size for Industrial and Commercial Applications
Size selection has to hold up once that panel is bolted into a cabinet, dashboard, or washdown line and running three shifts a day. Spec-sheet fit is only the starting point.
Start by matching size to use case:
- Handheld diagnostics — small panels (7" or under) for portability and low power draw
- Vehicle-mount computing — compact-to-medium sizes that survive vibration and limited dash space
- Fixed control room installations — medium-to-large panels (15"–24") supporting multi-window monitoring
Ruggedization needs scale with size. Larger panels in washdown, marine, or outdoor settings typically require sealed bezels, reinforced mounting, and higher IP ratings. IVC Displays' stainless-steel washdown line, for instance, spans 10.1" to 24" with IP66/IP67/IP69K sealing and food-grade 304/316 stainless construction for pharmaceutical and food-processing floors.
Marine and offshore installs need certified hardware, not adapted commercial panels. IVC's NP-9XX-MA marine panel PC series comes in 12.1", 19", and 24" configurations, each certified to IEC 60945, IACS E10, and DNV standards and engineered for shipboard use from the start.
When standard catalog sizes don't fit an existing enclosure or OEM design, custom sizing becomes the practical path forward. IVC Displays supports custom enclosure design, I/O modifications, and touchscreen selection for OEM integrators whose constraints fall outside standard 10.1"–24" offerings.
Before finalizing a size, walk through your constraints in order: enclosure space, viewing distance, data density, then environmental exposure. Skipping this sequence is how teams end up re-engineering mounts after the hardware arrives.
Frequently Asked Questions
What are the standard sizes for LCD screens?
Industrial LCD screens typically fall into three ranges: under 7" for handhelds, 7"–13.5" for control panels, and 13.6"+ for control rooms and multi-window setups. Exact sizes vary by manufacturer.
How big is a 16x2 LCD?
"16x2" refers to a character display grid (16 columns by 2 rows), not a diagonal inch measurement. These are common in basic embedded devices, with module dimensions typically around 80mm × 36mm.
What is a 7 inch TFT LCD display?
A 7-inch TFT LCD is a compact active-matrix panel commonly used in HMIs, handheld diagnostic tools, and space-constrained control interfaces. It balances readability with a small footprint, often paired with resolutions like 800×480.
What are the standard sizes of TFT displays?
Common industrial TFT sizes include 4.3", 7", 9.7", 10.1", 12.1", and 15.6", though availability depends on the specific vendor and product family. Larger formats up to 24" also exist for control-room and monitor applications.
Are TFT and LCD the same?
Not exactly. TFT (thin-film transistor) is a specific active-matrix technology used within LCD displays. All TFT screens are LCDs, but not all LCDs use TFT addressing; some use simpler passive-matrix designs.
What are the different types of LCD displays?
The three main panel types are TN (fast, budget-friendly, narrower viewing angles), IPS (wide viewing angles, strong color accuracy), and VA (strong contrast, moderate viewing angles). Each suits different industrial priorities: speed, color, or contrast.
