This confusion trips up even experienced integrators. Terms like "frameless," "panel-mount," and "open frame" get used loosely, and picking the wrong architecture means redesigning your enclosure later.
This guide breaks down what open frame displays actually are, how they compare to alternatives, the specs that matter, and how to choose the right one. Demand for embedded displays is climbing across manufacturing, kiosks, and rugged environments as automation expands. North America accounts for roughly 27% of the industrial-display market, an estimated $2.30 billion in 2025 with 7.8% projected annual growth.
Key Takeaways
- Open frame monitors are enclosure-free assemblies for cabinets, kiosks, and equipment integration
- They bridge raw panels (more design freedom) and finished monitors (faster deployment)
- Prioritize size, brightness, touch type, temperature range, and mounting pattern
- Food processing, marine, and oil and gas need purpose-built hardware, not retrofitted generic units
What Is an Open Frame Display?
An open frame monitor is a display assembly without an outer housing. Strip away the plastic bezel and desktop stand you'd find on a consumer monitor, and what's left is the core hardware: the LCD panel, driver electronics, power supply, and a metal mounting frame, sometimes with touch capability built in.
Elo Touch describes it plainly: the frame is exposed on the sides and back. There's no consumer-style casing because the display isn't meant to stand alone. It's meant to disappear into whatever enclosure you're building.

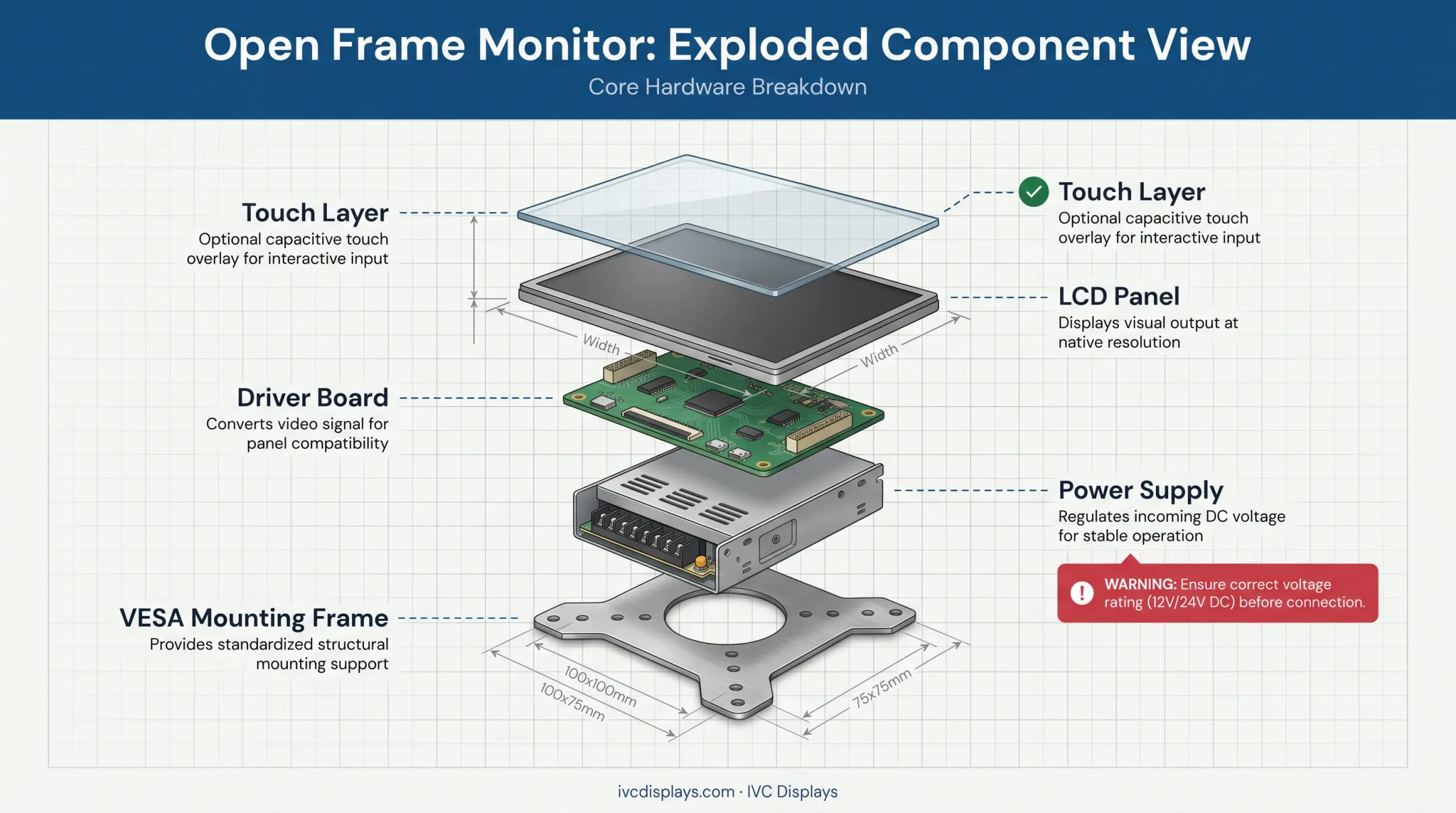

Each component plays a specific role:
- LCD panel: the display surface
- Driver board: converts video input into signals the panel can render
- Power supply: regulates incoming DC voltage for the panel and electronics
- Mounting frame: chassis that bolts the unit into your cabinet or kiosk
- Touch layer (optional): resistive or PCAP overlay for interactive use
Many open frame monitors use a VESA-pattern chassis, letting integrators bolt the display into custom enclosures using a standardized bolt spacing instead of engineering a proprietary mount.
Frameless vs. Open Frame: Not the Same Thing
These terms get mixed up often. A "frameless" monitor usually means a thin or invisible bezel on the front of a finished, housed product. Open frame means there is no housing at all: front, back, or sides. A frameless consumer monitor still has a full enclosure; you just can't see much bezel from the front.
Why Not Just Build Custom Electronics?
Building display electronics from scratch is expensive and slow. Driver boards, power regulation, and panel-mating hardware need specialized engineering most OEMs prefer not to staff in-house. Open frame monitors give manufacturing, automation, and OEM integrators pre-validated, space-saving hardware they can drop into a custom-branded enclosure without reinventing the display stack.

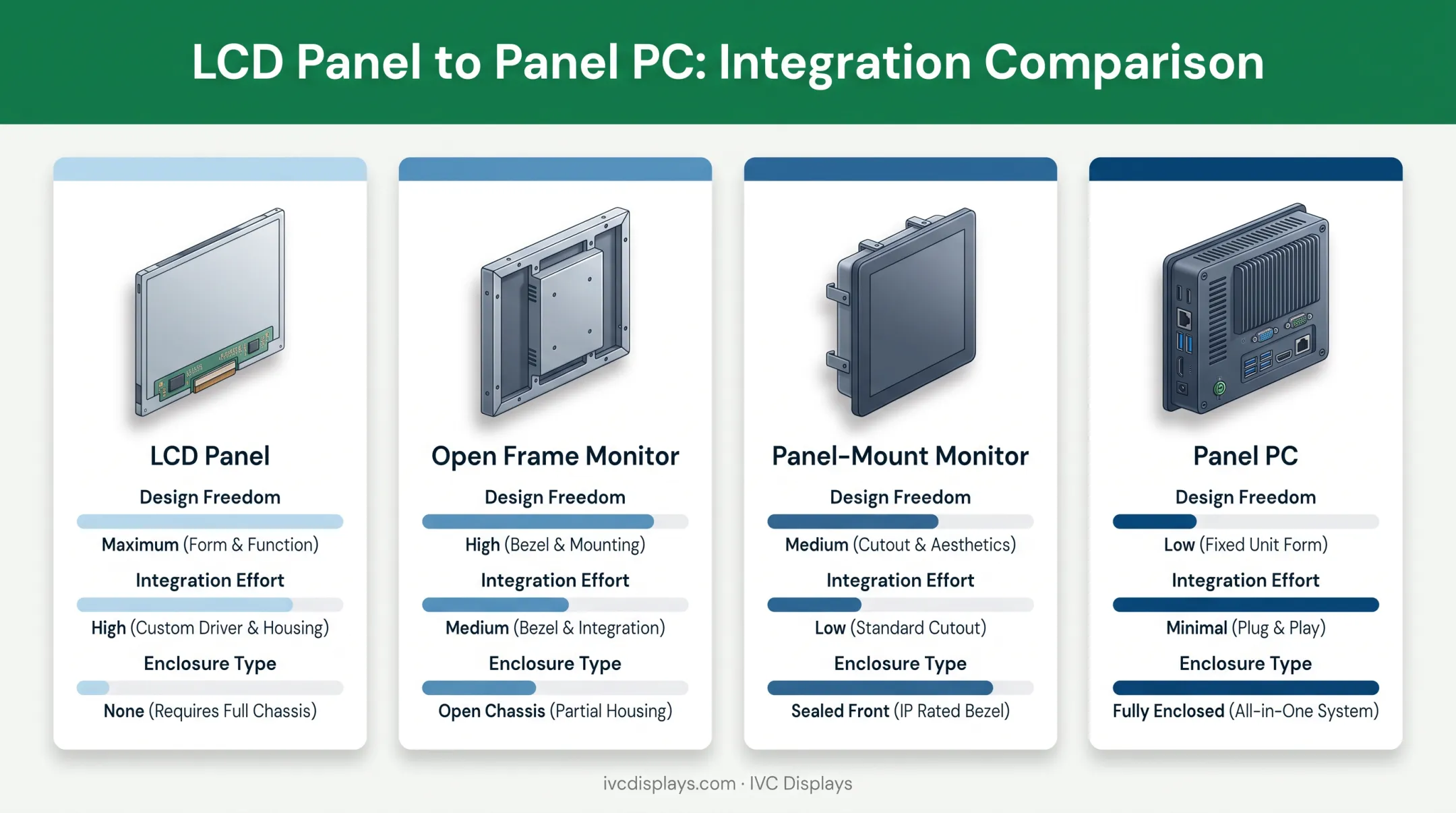

Open Frame vs. Other Display Options
Choosing the right architecture starts with understanding what you're trading off. Here's how the four common options stack up:
| Option | Enclosure | Design Freedom | Depth Profile | Integration Effort |
|---|---|---|---|---|
| Raw LCD panel | None | Highest | Thinnest | Highest (full electronics design) |
| Open frame monitor | None (integrator supplies) | High | Slim | Moderate (mount + power + I/O) |
| Panel-mount monitor | Finished flange/bezel | Moderate | Slightly deeper | Low (cutout + fasten) |
| Panel PC | Fully integrated computer | Lowest | Deepest | Lowest (all-in-one) |
What those tradeoffs mean in practice:
- Raw LCD panels — A component, not a finished product. You own driver electronics, cabling, protection, and validation: maximum flexibility, maximum engineering burden.
- Open frame monitors — Chassis-ready display with video/power inputs. You supply the mount, enclosure, and I/O path, and keep full control over bezel, depth, and industrial design.
- Panel-mount monitors — Finished front bezel and gasket-sealed body for a cutout. Faster to install, but you're locked into the manufacturer's bezel and depth.
- Industrial panel PCs — Display plus onboard CPU, memory, and storage. Choose this when you need an all-in-one computer; pair an open frame with an external PC when you only need the screen.
Desktop monitors don't belong in this stack-up. Stands and thick housings waste cabinet space and aren't built for embedding.
IVC Displays builds both sides of the decision. The NP-5XXOPN open-frame series covers 8" to 19" TFT-LCD models for OEM and kiosk integration, with optional resistive touch. The NP-9XXi panel PC line adds fanless computing in the same footprint when you want to skip a separate PC.
Key Specifications to Evaluate
Getting specs right up front saves you from a redesign later. Here's what to check.
Size and Resolution
Open frame monitors span a wide practical range. Small HMI panels often use 7–10 inches; kiosks and signage frequently run 15–24 inches; large-format digital signage can exceed 55 inches. IVC's NP-5XXOPN lineup covers 8", 10.4", 12.1", 15", 17", and 19" models, with resolutions from SVGA up to SXGA (1280×1024). Match resolution to viewing distance. Higher pixel density matters more for close-up touch interfaces than for signage viewed from ten feet away.
Brightness for Readability
Indoor environments typically need 250–400 cd/m² (nits). Outdoor or high-glare settings need considerably more. A 55-inch open frame model built for digital signage specifies 1,000 nits as a high-brightness benchmark for sunlight exposure. IVC brightness by model (use these as a starting filter against your ambient light):
- NP-508OPN and NP-512OPN: 400 cd/m²
- NP-515OPN: 350 cd/m²
- NP-517OPN and NP-519OPN: 300 cd/m²
- NP-510OPN: 250 cd/m²
If you're deploying outdoors, don't stop at nits alone—confirm anti-glare treatment and viewing angle too.
Touch Screen Technology
Three main options, each suited to different conditions:
- PCAP (projected capacitive): multi-touch, glass durability, and smartphone-like response—best for clean, consumer-facing kiosks
- Resistive: works with gloves, styluses, or nearly any press; AiM Touch notes better tolerance for dirty or oily environments than PCAP
- Infrared: scales well on large displays and accepts gloves or pens, but the exposed frame is more vulnerable to contamination and moisture
For gloved industrial operators, resistive is the safer bet. For public-facing kiosks, PCAP wins on responsiveness.
Temperature Range

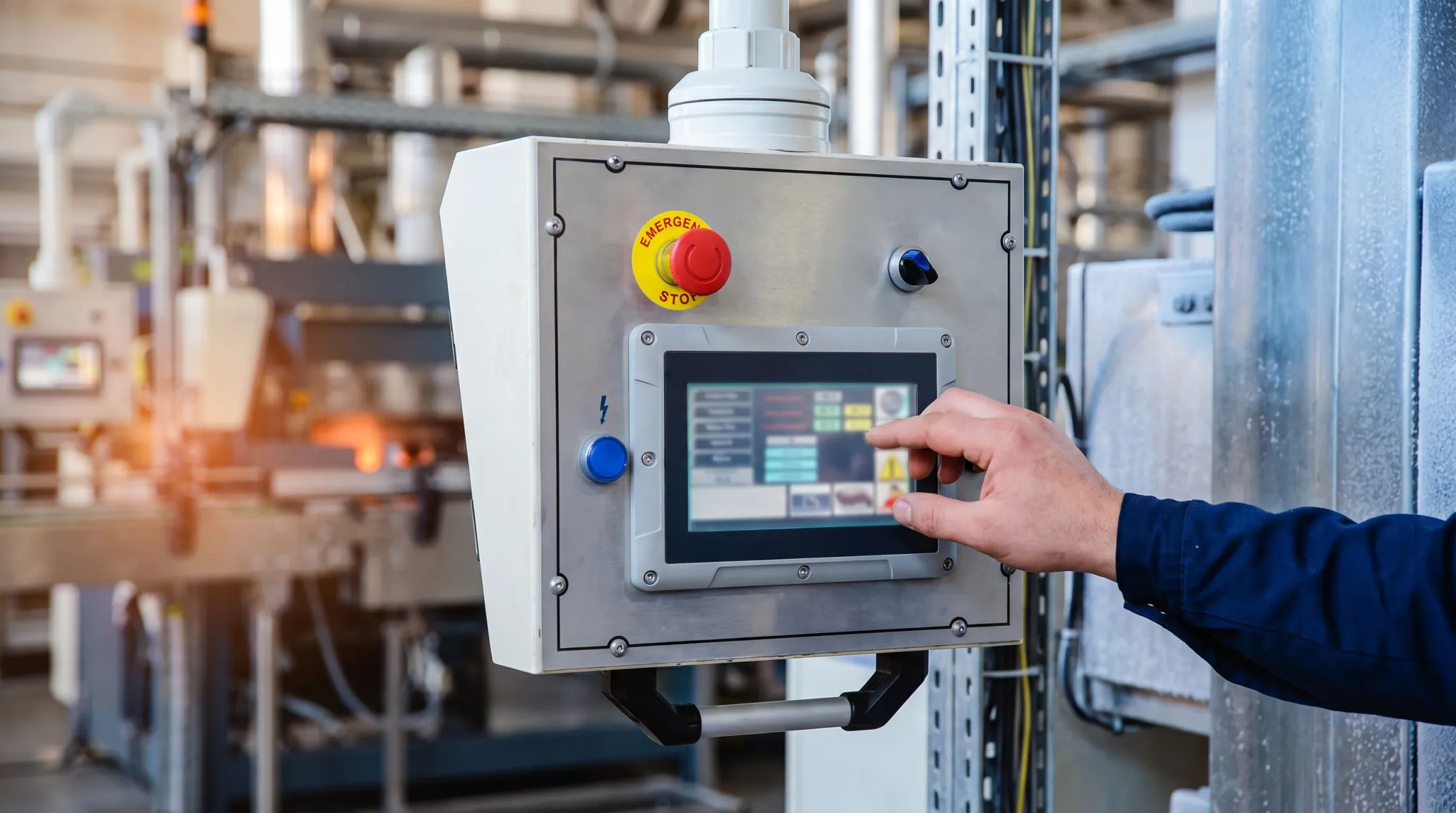

Extended temperature ratings matter if your display sits near ovens, freezers, or outdoor enclosures with no climate control. IVC's industrial-grade touchscreen monitors are rated for 0°C to 50°C operating range. Always confirm the operating range separately from storage range—they're not interchangeable numbers, and mixing them up leads to field failures.
Video Inputs
HDMI, VGA, DisplayPort, and DVI are the common options. Confirm which input your controller outputs before you specify the monitor, or you risk ordering a display that cannot connect.
Mounting Standards and Integration
Most open frame monitors use VESA mounting patterns: standardized bolt configurations that let you attach the display to a custom bracket or enclosure wall without proprietary hardware. VESA's FDMI standard covers displays from 4 inches to 90 inches diagonal, supporting desktop, wall, and specialty mounting configurations.
Not every open frame series uses VESA, though. Some rely on:
- Panel mounting – flange-based, passes through a cutout
- Bracket mounting – custom brackets designed around the chassis
- Custom OEM mounting – engineered specifically for your enclosure
Before finalizing a design, confirm three things with your supplier:
- Behind-panel depth: many spec sheets list only width and height, not chassis depth
- Power input voltage range: wide-range DC inputs (like 11–32V) offer flexibility across different equipment platforms
- Exact mounting hole pattern: don't assume 75×75mm or 100×100mm VESA; verify against the mechanical drawing
Skipping this step is the number one reason integrators end up redesigning enclosures mid-project.
Industries and Applications
Open frame displays show up wherever equipment needs a screen but not a standalone monitor. Common applications include:
- Kiosks and self-service terminals – retail, hospitality, ticketing
- Industrial HMI panels – machine control, SCADA interfaces, production monitoring
- Digital signage – embedded into custom cabinets rather than wall-mounted frames
- Transportation displays – passenger information, ticketing systems
IVC's core customers often need more than a commercial-grade screen. These settings demand hardware built for conditions standard monitors cannot handle:
- Manufacturing floors and production lines
- Food processing with washdown requirements
- Marine and offshore vessels
- Oil and gas facilities
- Defense applications

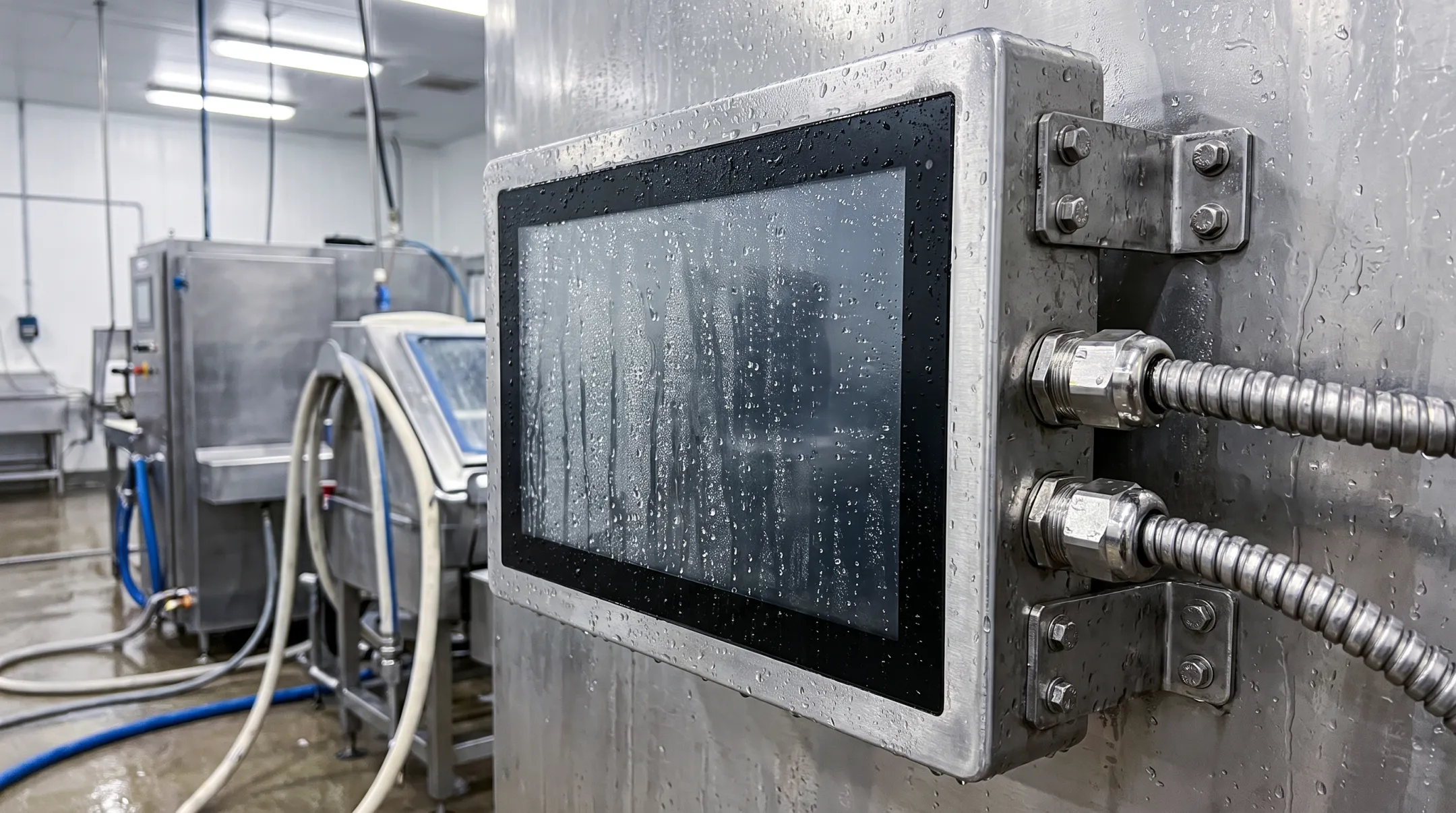

IVC's catalog spans that full range of ruggedization. Stainless steel waterproof computers such as the NP-71X4S deliver IP66/IP67/IP69K protection with 304 or 316 stainless construction for washdown use. That line sits apart from open frame models, yet it shows how far the same engineering approach extends.
OEM equipment integrators increasingly choose custom open frame solutions because they need a display that matches their enclosure's exact footprint, not a generic finished product.
Choosing the Right Open Frame Display for Your Application
Run through this checklist before requesting a quote:
- Size – matches your enclosure cutout and viewing distance
- Resolution – appropriate for content type and touch precision needs
- Touch requirement – PCAP, resistive, or none
- Brightness – 250–400 nits indoor; 1,000+ nits for high-glare or outdoor
- Temperature range – confirm operating range against your environment's extremes
- Mounting pattern – VESA, panel-mount, or custom bracket
- Behind-panel depth – verify against your enclosure's available space
- Power input – matches your equipment's DC supply
- Lifecycle availability – critical for OEM production runs spanning years
Standard catalog model: Choose this when your application fits common sizes (8–19 inches) and standard brightness/touch combinations. You get faster lead times and lower cost.
Custom-engineered: Choose this when you need specific enclosure integration, unusual sizing, extended temperature ratings, or long-term OEM production consistency. Custom engineering typically covers:
- Display modifications
- I/O customization
- Touchscreen selection
- Mounting solutions tailored to your enclosure
If your project falls into that second category, work directly with a manufacturer that offers both catalog and custom industrial hardware. A partner like IVC Displays gives you engineering support instead of leaving you to guess from spec sheets alone.
Frequently Asked Questions
What is a frameless computer monitor?
A frameless monitor has minimal or no visible bezel around the screen but typically still has a full housing. This differs from an open frame monitor, which has no housing on the front, back, or sides.
What are the four types of monitors?
For industrial buyers, the relevant categories are enclosed consumer monitors, panel-mount monitors, open frame monitors, and touch-enabled monitors. Each fits different integration needs, from standalone use to embedded OEM applications.
Are touchscreen monitors worth it?
Touchscreens add real value in kiosk, HMI, and self-service applications where speed and intuitive interaction matter. For pure display-only uses like signage or status monitoring, a non-touch panel is often more cost-effective.
Which type of touch screen is best?
PCAP suits most modern applications thanks to multi-touch support and durability. Resistive works better for gloved-hand operation or stylus input common in industrial and food processing settings.
What is the best monitor for outdoor use?
Outdoor-readable monitors need high brightness (generally 1,000+ nits), along with anti-glare treatment and a wide operating temperature range to handle direct sun and temperature swings.
Are there touchscreen external monitors?
Yes. External touchscreen monitors are common in kiosks and industrial panels, often built on an open frame or panel-mount chassis depending on the enclosure design and integration requirements.
