That's where IP ratings come in. They replace vague marketing language with a precise, testable code. IP69 sits at the top of that code — the highest standard for protection against dust and high-pressure, high-temperature washdown. It matters most in manufacturing plants, food processing lines, and marine environments where equipment gets hosed down daily.
This guide breaks down what IP69 actually tests for, how it compares to IP68 and IP65, and how to pick the right rugged hardware for your environment.
Key Takeaways
- IP69 = full dust protection (6) plus high-pressure, high-temperature water jet resistance (9)
- IP69 is not submersible — continuous immersion is IP68
- IP69K adds a defined close-range washdown test at fixed angles and distances
- Food processing, pharma, and marine teams use IP69 for hygiene-critical washdown
- Match the rating to real exposure — not the highest number on the datasheet
What Does the IP69 Rating Actually Mean?
The IP (Ingress Protection) code follows a simple structure under IEC 60529: two digits, first for solids, second for liquids. IP69's "6" means complete protection against dust ingress and contact with hazardous internal parts — no dust gets in, period.
The "9" is where things get demanding. It certifies resistance to close-range, high-pressure water jets at high temperatures, according to the IEC's official IP ratings summary.

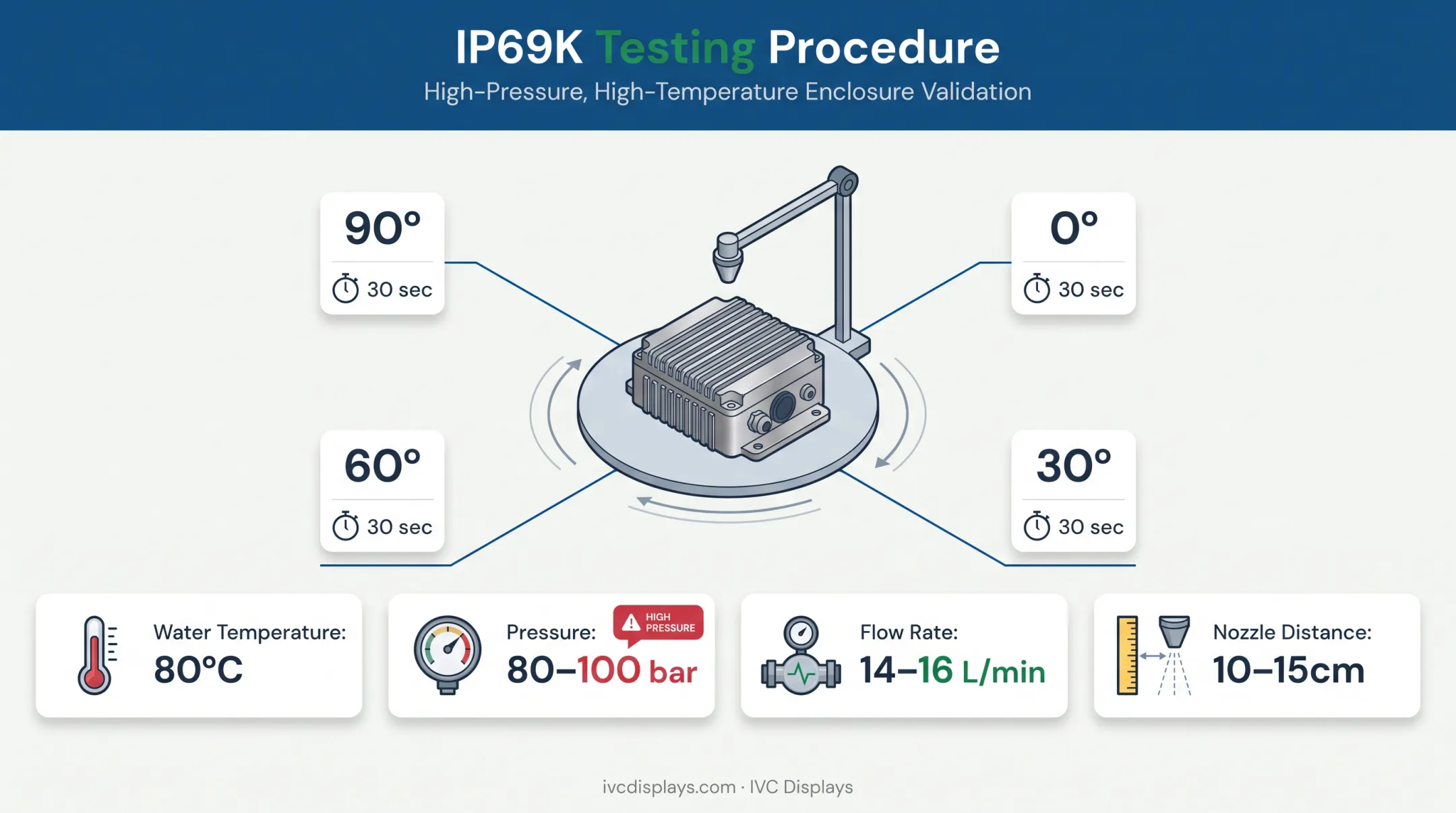

The Testing Procedure
The DIN 40050-9 protocol (the basis for IP69K testing) specifies these parameters:
- Water temperature: 80°C (176°F)
- Pressure: 80–100 bar (1,160–1,450 psi)
- Flow rate: 14–16 L/min (3.7–4.2 gpm)
- Nozzle distance: 10–15 cm (4–6 in) from the enclosure
- Test duration: 30 seconds at each of four angles (0°, 30°, 60°, 90°) on a rotating turntable
That's according to both Eaton's IP69K testing documentation and Sealcon's independent breakdown of the same standard.
IP69 vs. IP69K: What's the Difference?
You'll see both labels used, sometimes interchangeably. Technically, they're not identical:
- IP69 is the IEC 60529 designation for hot, high-pressure jet resistance
- IP69K comes from DIN 40050-9, a German standard ("K" for Kraftfahrzeug, meaning motor vehicle) originally built for cleaning dump trucks and cement mixers
DIN Media lists the 1993 version of DIN 40050-9 as withdrawn, so current automotive and industrial spec sheets increasingly reference ISO 20653 under the IP6K9K label. For practical buying purposes, ask for the actual test report and standard edition rather than trusting the shorthand.
Is IP69 Waterproof? Setting Realistic Expectations
Not in the way most people mean "waterproof." IP69 is engineered for washdown resistance — a hot, directed spray for a short duration. It says nothing about what happens if you drop the device in a bucket or leave it sitting in standing water for an hour.
Intertek's IEC 60529 testing guide draws a clear line between two exposure types:
- IPX9: High-pressure and steam-jet cleaning
- IPX8: Continuous immersion in water
A device rated IP69 without a separate IP68 rating may not survive extended submersion. If equipment sits in pooled water on a shop floor, or gets fully dunked during a cleaning cycle, IP69 alone does not cover you. You need both ratings, tested and declared separately.

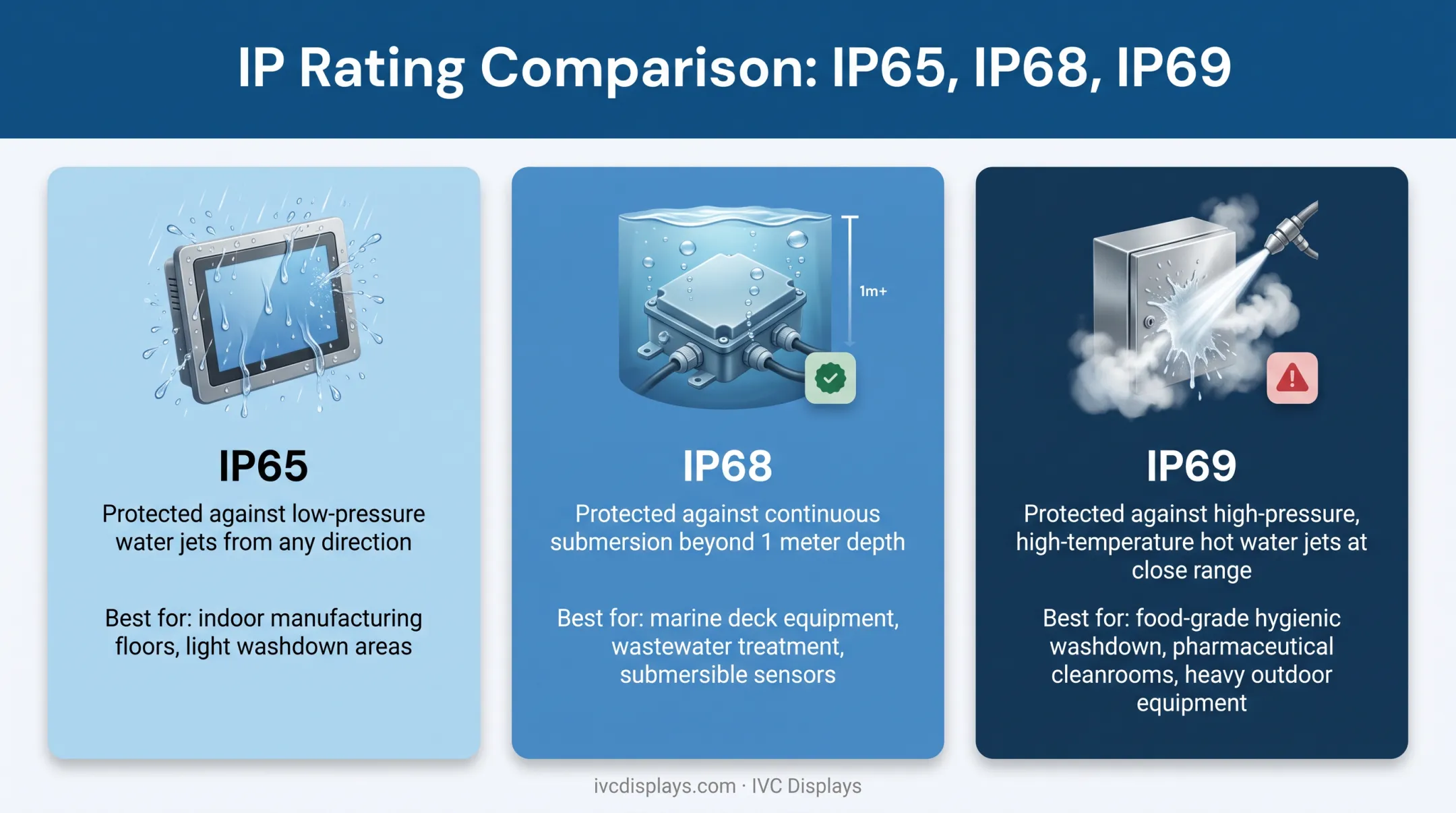

IP69 vs. IP68 vs. IP65: How Do They Compare?
These three ratings often get treated like a ladder, as if IP69 automatically "includes" everything below it. It doesn't. Each tests a different exposure scenario entirely.
| Rating | Water Test | Best For |
|---|---|---|
| IP65 | Low-pressure water jets from any direction | Occasional splashes, rain, light spray |
| IP68 | Continuous immersion beyond 1 meter (depth/duration set by manufacturer) | Equipment that may be submerged |
| IP69 | High-pressure, high-temp jets at close range | Daily washdown, steam cleaning, sanitation |
Phoenix Contact's engineering guidance separates these into distinct exposure zones: splash and rain (IP65/IP66), underwater service (IP67/IP68), and industrial steam-jet cleaning (IP69K). These are three separate hazard categories, not tiers of the same test. In washdown environments, that high-pressure rating is commonly specified as IP69K.
Why manufacturers combine ratings: A panel PC that faces both flooding risk and daily washdown needs dual certification, like IP68/IP69K. This isn't redundant marketing. It reflects real engineering work. Achieving IP69 requires:
- Reinforced gaskets rated for thermal cycling
- Sealed connector housings (not just covered ports)
- Enclosure seams designed to resist pressure intrusion, not just splash
That's meaningfully more complex, and costlier, than an IP65 build.
Why IP69 Matters for Industrial and Rugged Computing Hardware
Panel PCs, monitors, and vehicle-mount computers installed in food processing, pharma, and marine settings don't get an easy life. They face daily high-pressure washdowns, sanitation cycles, and often caustic cleaning chemicals: conditions that would kill consumer-grade electronics within weeks.
Washdown environments combine steam, hot water, and industrial detergents in ways that can cause catastrophic electrical failure from humidity alone, even without direct water contact. Pumps & Systems' industry research has documented this failure mode in sanitation-heavy plants.

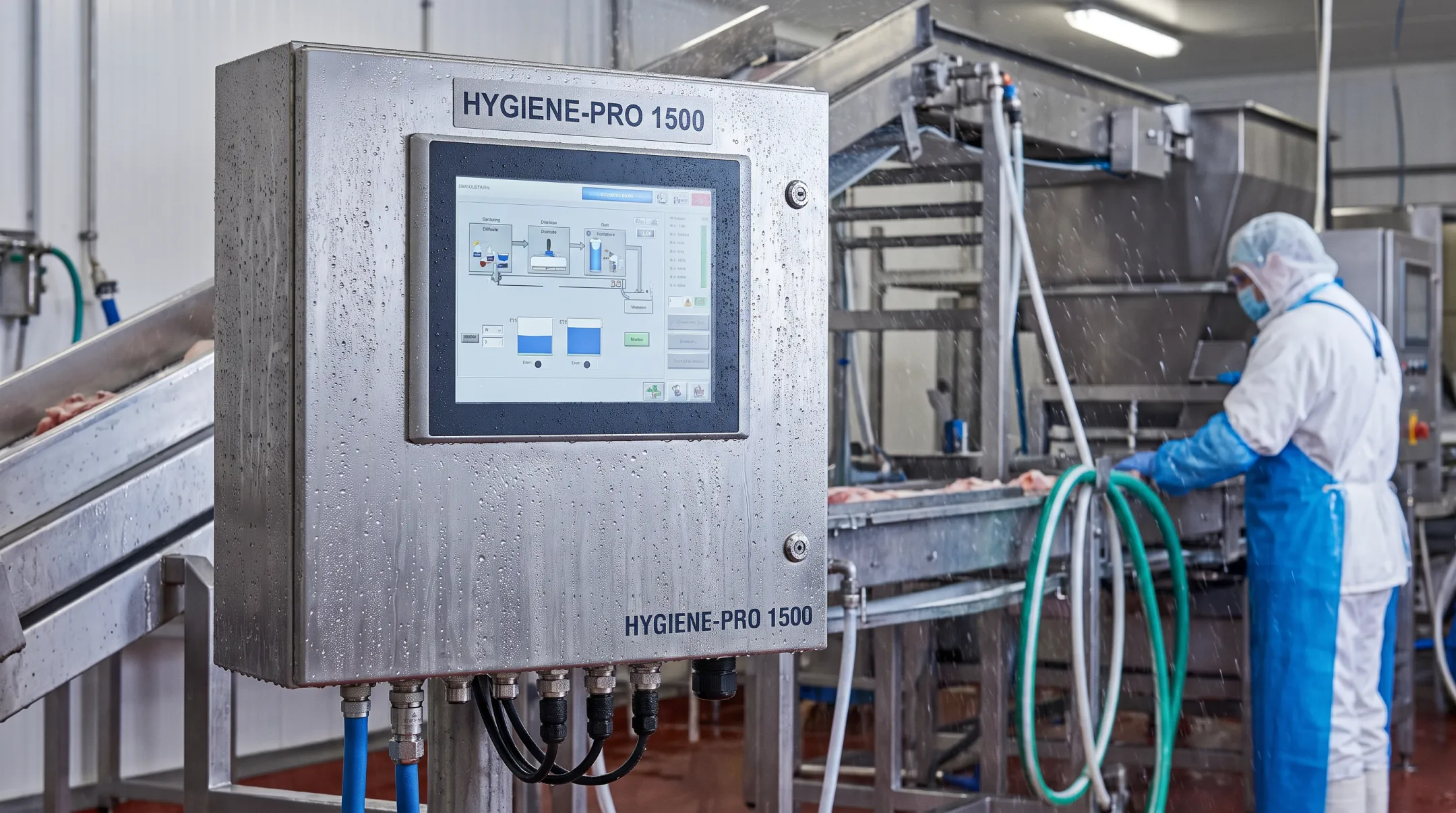

A real-world scenario: picture a panel PC mounted directly on a meat-processing line. Every shift ends with a caustic chemical washdown at high pressure and near-boiling temperatures. A device without proper IP69K sealing and stainless steel construction won't last a quarter before corrosion or moisture ingress takes it down.
This is the environment IVC Displays' stainless steel washdown systems are built for:
- Fully sealed, fanless designs
- 304 or 316 stainless steel enclosures
- Waterproof M12 connectors
The stainless housing resists corrosion that ordinary aluminum or polycarbonate enclosures can't handle under repeated chemical exposure.
For OEM equipment integrators, the stakes go beyond hardware replacement cost. A failed HMI on a regulated food or pharma line means downtime. Wesco/ABB has cited food-plant downtime exceeding $30,000 per hour in some facilities, so specifying the right IP rating at design time protects both uptime and compliance.
Industries and Applications That Require IP69-Rated Equipment
IP69-rated hardware shows up wherever hygiene and heavy cleaning intersect with electronics:
- Food and beverage processing — CIP/SIP (Clean-in-Place/Sterilize-in-Place) stations requiring daily high-pressure sanitation
- Pharmaceutical manufacturing — cleanroom and production equipment subject to strict sanitation cycles
- Marine and offshore — computers exposed to saltwater spray and deck washdowns
- Automotive and rail manufacturing — vehicle-mount computers cleaned between shifts
- Agriculture — equipment hosed down after field use
Product examples make the pattern clear. ifm's full-metal ultrasonic sensors carry IP69K ratings for conveyor-belt object detection in facilities that steam-clean daily. Hope Industrial's 2025 IP69K monitor line targets food, beverage, and pharmaceutical plants for hygiene-critical HMI use.
IVC Displays builds stainless steel waterproof industrial computers on the same principle. Models offer IP66, IP67, or IP69K protection for food, dairy, meat, chemical, and pharmaceutical washdown lines, with an operating range of -10°C to 60°C that covers cold storage and hot cleaning cycles.

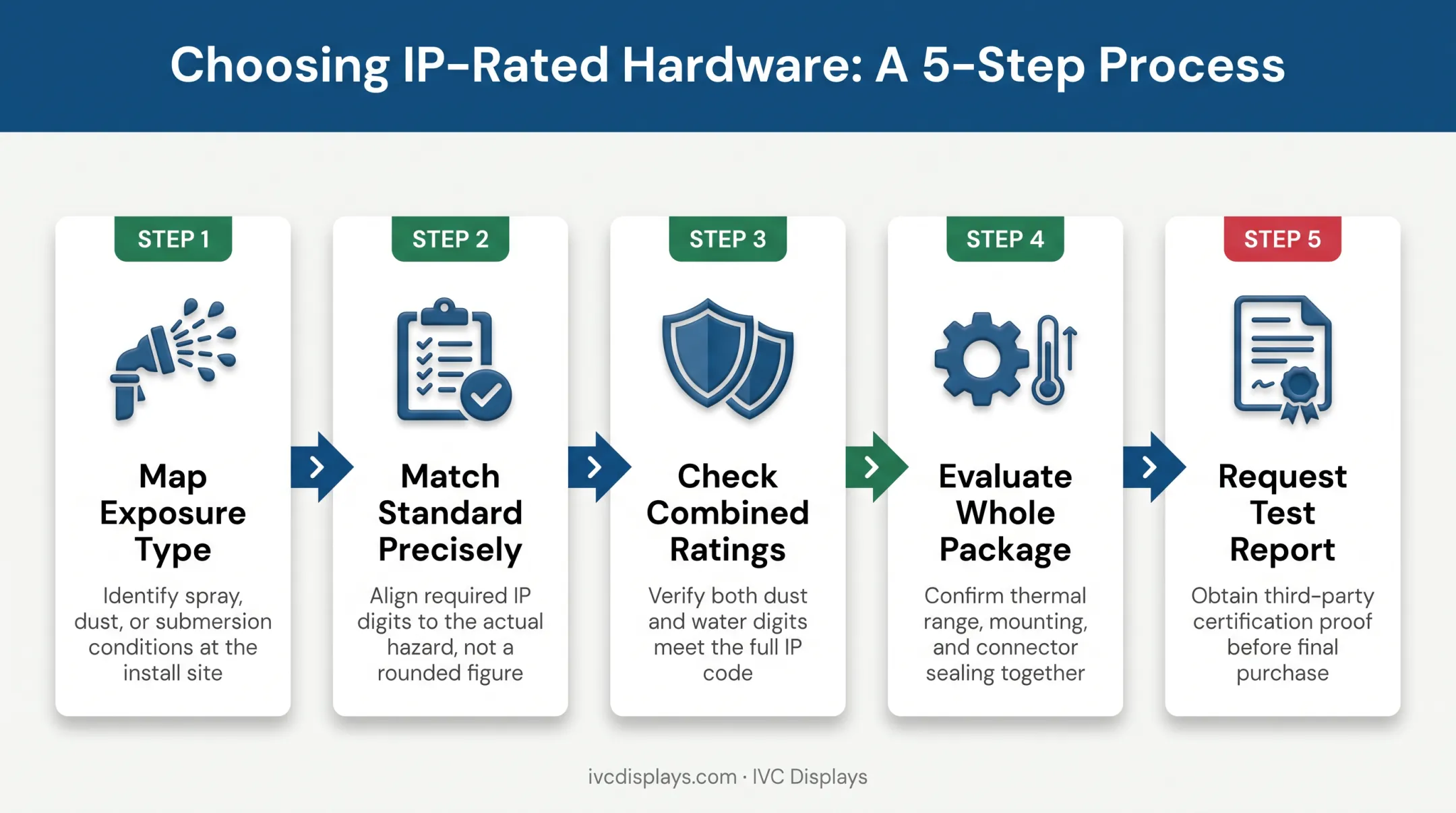

How to Choose the Right IP-Rated Hardware for Your Application
Don't default to the highest number on the spec sheet. Start with your actual exposure:
- Map the exposure type — Is it a directed jet, steam cleaning, occasional splash, temporary immersion, or standing water?
- Match the standard precisely — IP69/IP69K for hot jet washdown; look for IP68 separately if submersion is a risk
- Check for combined ratings — IP68/IP69K coverage matters if your equipment faces both flooding and washdown
- Evaluate the whole package — temperature tolerance, chemical resistance, and enclosure material (stainless, aluminum, or polycarbonate) matter alongside the IP number
- Request the test report — ask for the standard edition, test conditions, and configuration tested, not just the marketing claim
For washdown-heavy environments, stainless steel construction consistently outperforms aluminum or polycarbonate on chemical and corrosion resistance. IVC Displays builds stainless steel systems around that principle: 304 or 316 enclosures, fanless thermal design, and screen sizes from 10.1" to 24" for washdown duty.
Choose the rating that matches the hose, steam, or saltwater spray your hardware faces every day.
Frequently Asked Questions
What does the IP69 rating mean?
IP69 signifies complete dust protection (the "6") plus resistance to high-pressure, high-temperature water jets (the "9"), per IEC 60529 standards. It's the highest ingress protection classification for washdown resistance.
How does IP69 compare to other ratings like IP68 or IP65?
IP65 covers low-pressure water jets, IP68 covers continuous immersion, and IP69 covers high-pressure, high-temperature close-range washdown. Each tests a completely different exposure scenario.
Is IP69 waterproof?
IP69 offers excellent protection for washdown and steam-cleaning scenarios, but it isn't a general "waterproof" catch-all. For submersion protection, you need an accompanying IP68 rating.
Can IP69-rated devices withstand rain and water jets?
Yes. IP69 devices are tested against far more extreme pressure and heat than standard rain or jet exposure requires, so they comfortably exceed those lower-level demands.
Can IP69-rated devices be submerged or used underwater?
Not necessarily. IP69 alone doesn't guarantee submersion safety — it tests jet resistance, not immersion. Look for an accompanying IP68 rating if swimming or underwater use is a concern.
