Camera-based optical touch has emerged as a rugged, versatile answer for manufacturing, automation, and defense applications. This article breaks down how optical touch works, how it compares to resistive and capacitive alternatives, and what industrial buyers should evaluate before choosing a monitor for harsh conditions.
Key Takeaways
- Optical touch uses infrared LEDs and corner-mounted cameras to detect touch via light interruption, not pressure or conductivity
- Optical systems support multi-touch and work with gloves or styluses, which suits harsh industrial use
- Limitations include sensitivity to bright ambient light and a bulkier bezel
- Choose touch technology by environment: dust, moisture, gloves, and vibration drive the best fit
What Is Optical Touch Screen Technology?
Optical touch screens register input using camera-based infrared sensing instead of resistive or capacitive layers. Miniature cameras sit in the display's corners, paired with an infrared LED border that projects a light field just above the glass surface.
Interactive kiosks, industrial control panels, and rugged monitors use optical sensing because it tolerates scratches and surface wear better than membrane-based alternatives, according to Canvys's optical touch technology overview.
Core hardware components:
- Infrared LED emitters positioned along the display's border
- CMOS image sensors (cameras) mounted at two or more corners
- A controller that processes camera data to calculate touch coordinates
Optical Touch vs. Optical Bonding: Don't Confuse Them
The names are easy to mix up, but they refer to different layers of the product. Optical bonding is an assembly process where a clear adhesive bonds the touch sensor directly to the display, eliminating the air gap between layers to improve clarity and durability. Optical touch is the sensing method itself.
A monitor can use camera-based optical touch with or without optical bonding. Always check both specs separately.
Because the cameras detect any interruption in the IR field, optical touch is object-agnostic. It works equally well with:
- Bare fingers
- Gloved hands (including cut-resistant or chemical-resistant PPE)
- Styluses or other solid pointers
That flexibility matters on factory floors, washdown lines, and other sites where operators cannot rely on bare-skin capacitive input.

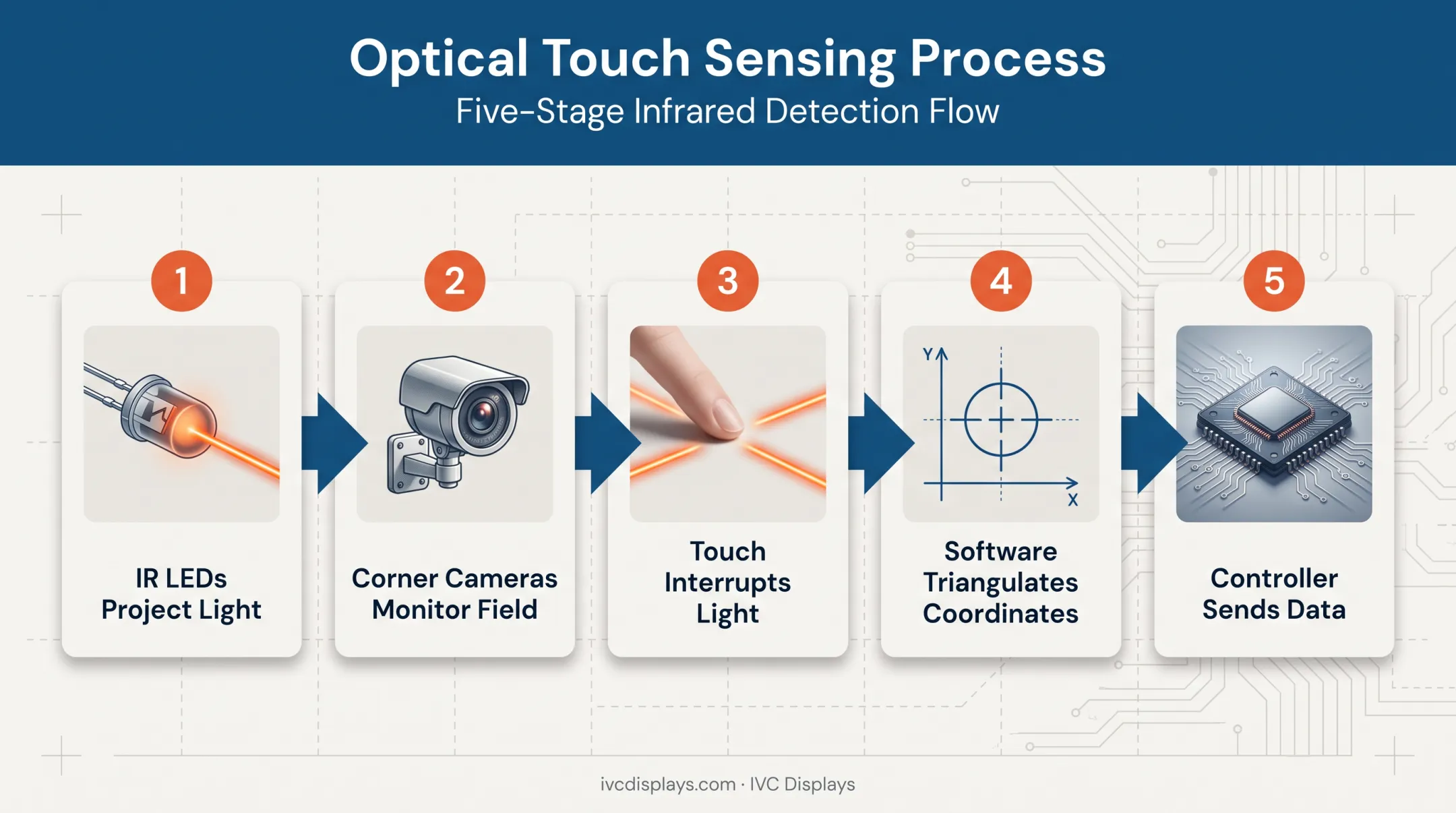

How Camera-Based Optical Touch Works
The sensing cycle happens in fractions of a second, but here's the breakdown:
- IR LEDs project light across the screen surface, creating an invisible plane just above the glass
- Corner cameras continuously monitor this light field from their respective angles
- A touch interrupts the light, and each camera captures the resulting shadow or disruption
- Software triangulates the exact X-Y coordinates using data from two or more camera viewpoints
- The controller sends coordinates to the connected system, registering the touch input
This triangulation approach is what makes accurate multi-touch tracking possible. Each touch point creates its own distinct shadow, which the cameras calculate separately. Systems with two cameras typically resolve two touch points, while four-camera configurations can resolve three or more simultaneous touches.
Why This Matters for Longevity
Because there's no physical membrane or capacitive layer sitting on the glass, optical touch monitors don't wear out the same way resistive screens do. Optical systems continue functioning even with scratches and surface wear on the glass itself.
That said, don't assume this translates into a guaranteed touch-cycle lifespan. No optical touch vendor publishes a numeric touch-cycle rating comparable to PCAP or resistive products. Ask suppliers for actual test data, not just qualitative durability claims.

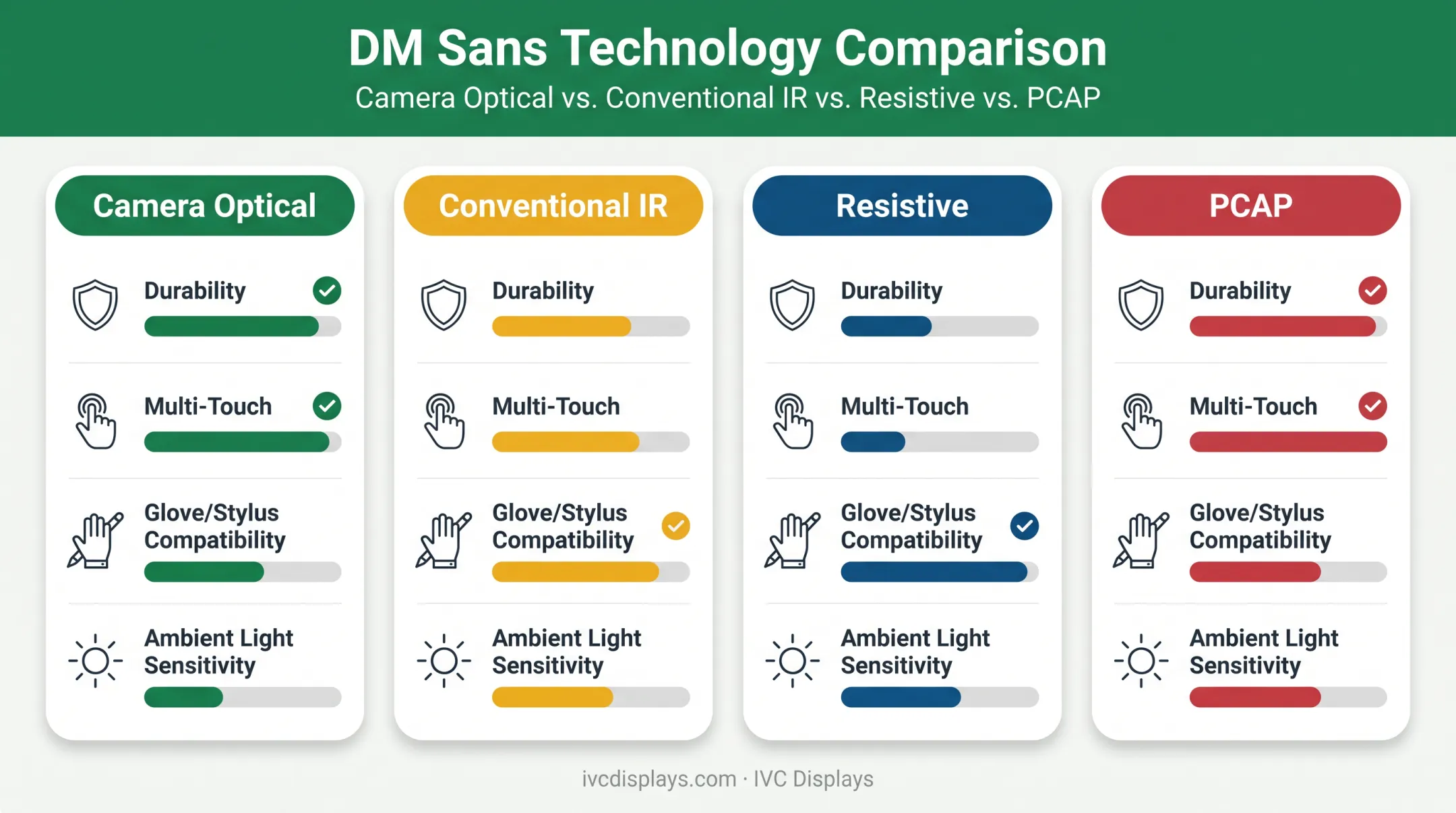

Optical Touch vs Other Touch Screen Technologies
Here's how the four main touch technologies stack up for industrial buyers:
| Technology | Durability | Multi-Touch | Glove/Stylus | Ambient Light Sensitivity |
|---|---|---|---|---|
| Camera Optical | High (no wear layer) | Yes, camera-dependent | Excellent, any pointer | Moderate; tested to 75-100 klx in some designs |
| Conventional IR (beam) | Moderate; frame vulnerable to dust/damage | Limited | Good | Poor in direct sunlight/rain |
| Resistive | High touch-cycle ratings (35M+ documented) | Limited | Good, especially thick gloves | Low impact; holds up in bright light |
| PCAP (Capacitive) | Very high (50M+ touches documented) | Excellent, up to 16+ points | Limited to thin gloves only | Low impact; holds up in bright light |
Quick reference: the four main touch screen types:
- Resistive: pressure-based, works with any pointer including thick gloves
- Capacitive (PCAP): electrical-field based, best gesture support, but restricts glove thickness
- Conventional IR (beam-type): perimeter light beams, cost-effective at large sizes
- Optical (camera-based): vision-based triangulation, pointer-agnostic, no wear layer
For bright, high-glare environments, PCAP or resistive typically outperform optical and beam IR unless the optical system has been specifically validated for high ambient light.
According to a 2011 review of camera-based optical touch technology, improved filtering allowed some optical systems to reach maximum ambient-light ratings of 75-100 klx. Ratings still vary significantly by model.
Advantages and Limitations of Optical Touch in Industrial Settings
Optical touch fits factory floors and logistics hubs when durability and gloved input matter more than a slim bezel.
Advantages:
- High touch accuracy through triangulation from multiple camera angles
- Long-term durability with no physical wear layer to degrade
- Reliable glove, stylus, or bare-finger input — critical for PPE-heavy environments
- Scratch tolerance without loss of functionality
Limitations:
- Bright ambient light or high-glare conditions can interfere with camera sensing
- Requires a larger bezel to house the corner cameras, adding roughly 3.5mm of thickness beyond the glass
- Moving liquids or solid contamination on the surface can trigger false touches or temporary loss of function
Despite these tradeoffs, optical touch remains a strong option for dusty, vibration-prone, PPE-heavy environments. Manufacturing lines, logistics terminals, and sites where workers cannot remove gloves are common fits.
Choosing the Right Touch Monitor for Harsh Environments
Not every touch monitor built for an office survives a factory floor. Industrial buyers need to look past the touch technology itself and evaluate the whole system.
Key specs to verify:
- IP rating scope — confirm whether it covers the front panel only or the entire enclosure
- Operating temperature range — verify it matches your facility's actual conditions, not a generic datasheet figure
- Vibration and shock resistance — request the specific test method and revision, not just "MIL-STD-810G compliant"
- Touch technology fit — match glove thickness, contamination exposure, and lighting to the right sensing method

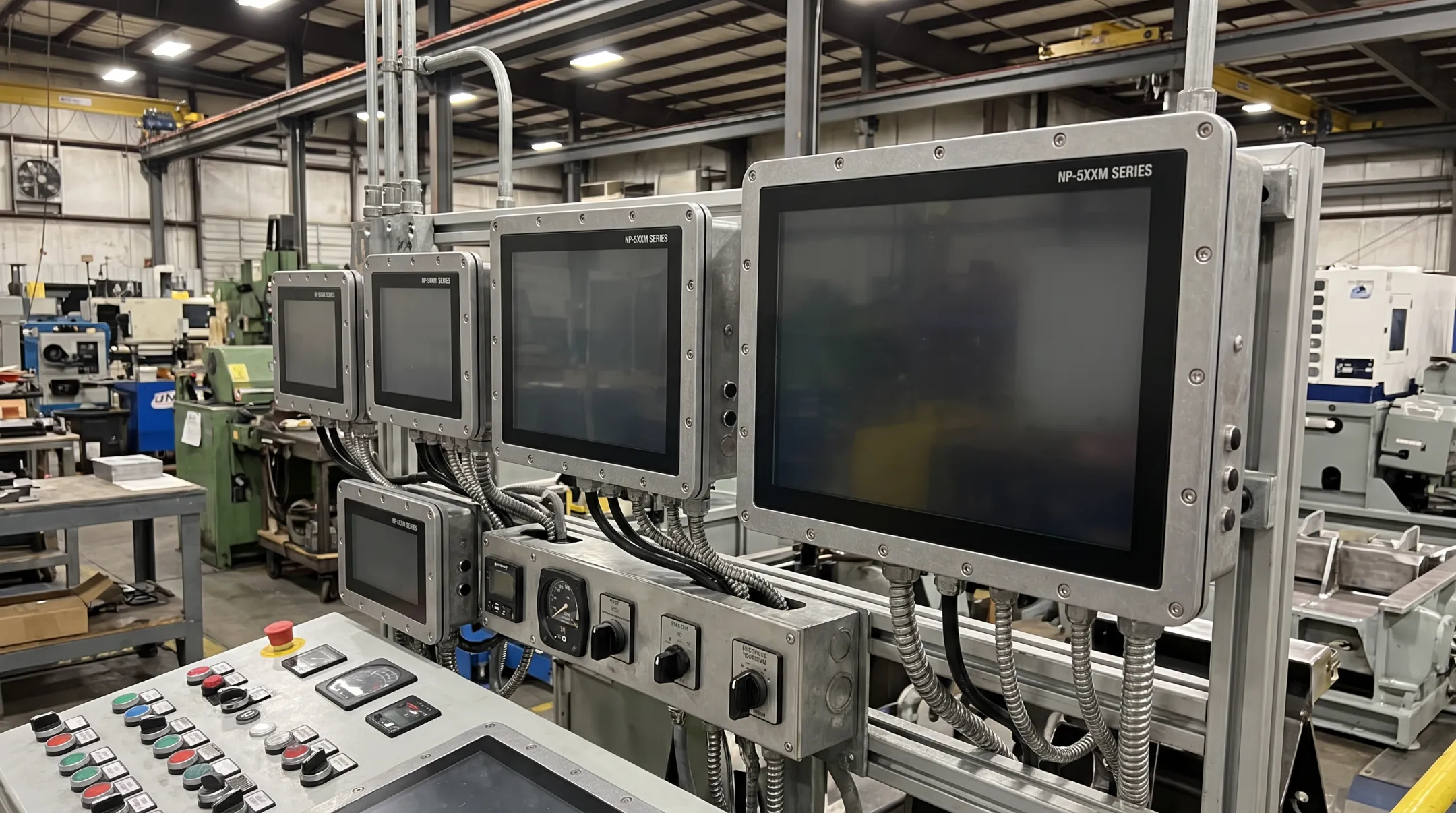

IVC Displays builds rugged touch monitors for these conditions. The NP-5XXM Series, for example, covers 7" to 21.5" screens with touch options matched to the environment, plus IP65 front-panel protection and a 0°C to 50°C operating range for manufacturing automation, industrial control, and marine use.
Rather than adapting a consumer-grade monitor and hoping it holds up, choose manufacturers that support OEM integration and custom configurations: enclosure design, I/O ports, touchscreen type, and mounting built around the application. That approach beats retrofitting off-the-shelf hardware.
Frequently Asked Questions
What is a touch panel used for?
Touch panels let operators interact directly with a display, without a separate mouse or keyboard. They're common in industrial HMIs, point-of-sale systems, and interactive kiosks where quick, direct input is essential.
What is a digital touch screen?
A digital touch screen combines a visual display with an input sensor layer. When you touch it, the sensor detects the input and translates it into a digital command the connected system can process.
What are the main types of touch screens?
The four main types are resistive (pressure-based), capacitive/PCAP (electrical-field based), infrared (beam-type), and optical/camera-based (vision and triangulation based). Each suits different environments and pointer requirements.
Which touch screen technology is best for monitors?
It depends entirely on your environment. Capacitive works well for general indoor use with thin gloves, while optical or resistive touch better suits rugged, glove-heavy, or outdoor applications.
What is the lifespan of a touch panel?
Lifespan varies by technology. PCAP products are often rated above 50 million touches, and resistive models exceed 35 million. Optical touch panels avoid wear-layer degradation, but published touch-cycle ratings are inconsistent—request model-specific data.
